Brake Disc

ATE

Reference: 24.0128-0155.1

OTTO code: ATE-428155

Shipped: within 24hrs

€ 73.85 incl. VAT

  • MERCEDES-BENZ: 204 421 07 12 / 2044210712
  • MERCEDES-BENZ: 204 421 25 12 / 2044212512
  • MERCEDES-BENZ: 212 421 13 12 / 2124211312
  • MERCEDES-BENZ: A 204 421 07 12 / A2044210712
  • MERCEDES-BENZ: A 212 421 13 12 / A2124211312
  • MERCEDES-BENZ: A 204 421 25 12 / A2044212512

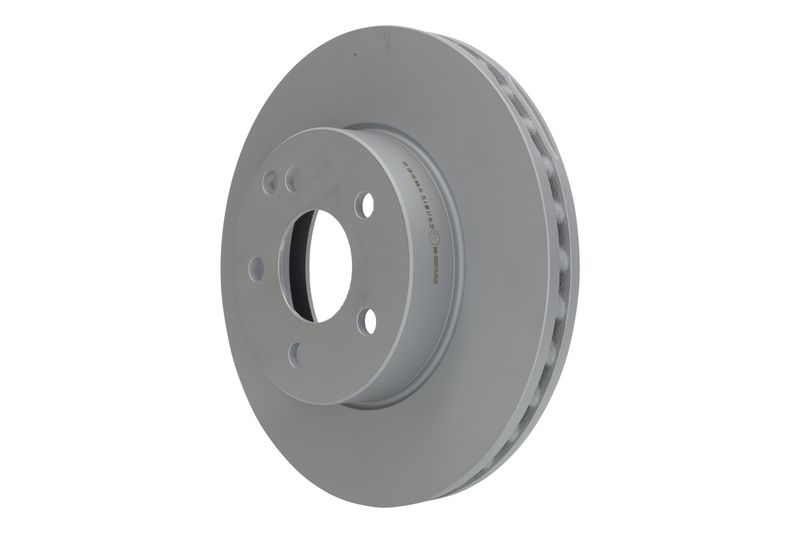

ATE Brake Disc 24.0128-0155.1
Specifications
  • Outer Diameter [mm]: 295,0
  • Brake Disc Thickness [mm]: 28,0
  • Minimum thickness [mm]: 25,4
  • Brake Disc Type: Vented
  • Machining: Alloyed/High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Supplementary Article/Info 2: with bolts/screws
  • MAPP code available
  • Bolt Hole Circle Ø [mm]: 112,0
  • Height [mm]: 64,5
  • Centering Diameter [mm]: 67,0
  • Inner Diameter [mm]: 154,3
  • Bore Diameter [mm]: 15,2
  • Test Mark: E1 90R-02C0115/0039
