Brake Disc

ATE

Reference: 24.0122-0212.1

OTTO code: ATE-422212

Shipped: BACK ORDER

€ 81.60 incl. VAT

  • VAG: 4E0 615 601 A
  • VAG: 4E0 615 601 K
  • VAG: 3D0 615 601 D

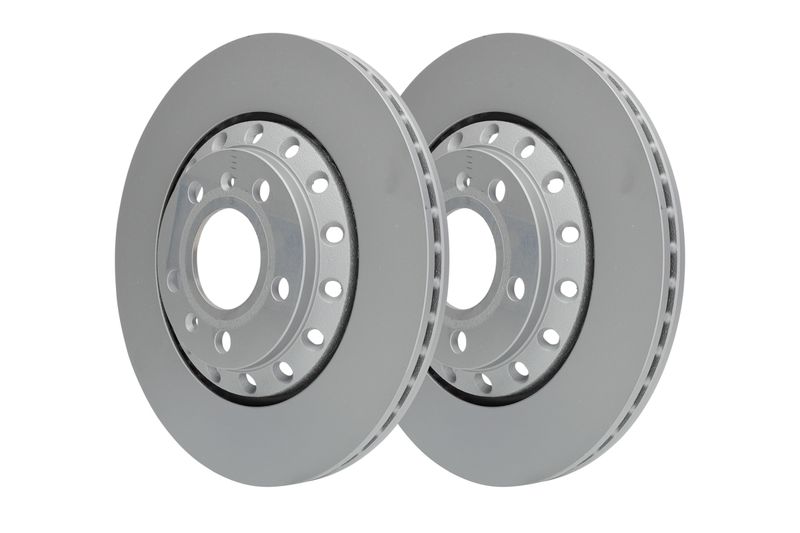

ATE Brake Disc 24.0122-0212.1

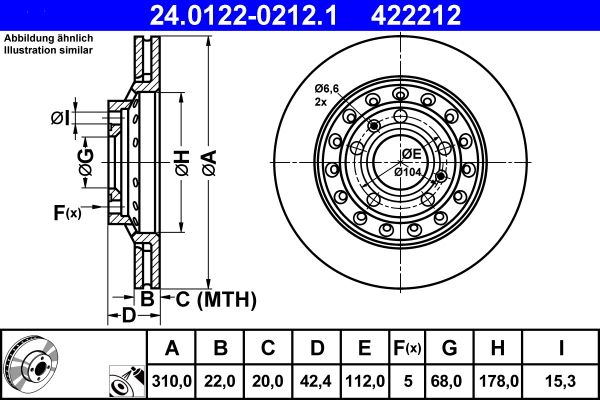

Specifications
  • Outer diameter [mm]: 310,0
  • Brake Disc Thickness [mm]: 22,0
  • Minimum thickness [mm]: 20,0
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • MAPP code available
  • Bolt Hole Circle Ø [mm]: 112,0
  • Height [mm]: 42,4
  • Centering Diameter [mm]: 68,0
  • Inner diameter [mm]: 178,0
  • Bore Ø [mm]: 15,3
