Brake Disc

ATE

Reference: 24.0110-0261.1

OTTO code: ATE-410261

Shipped: within 24hrs

€ 49.75 incl. VAT

  • VAG: 8E0 615 601 P / 8E0615601P
  • VAG: 895 615 601 A / 895615601A
  • VAG: 8E0 615 601 B / 8E0615601B

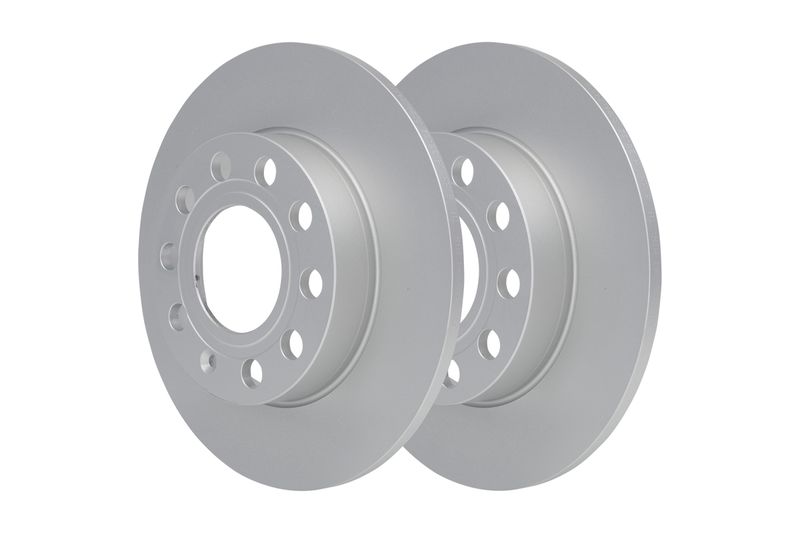

ATE Brake Disc 24.0110-0261.1

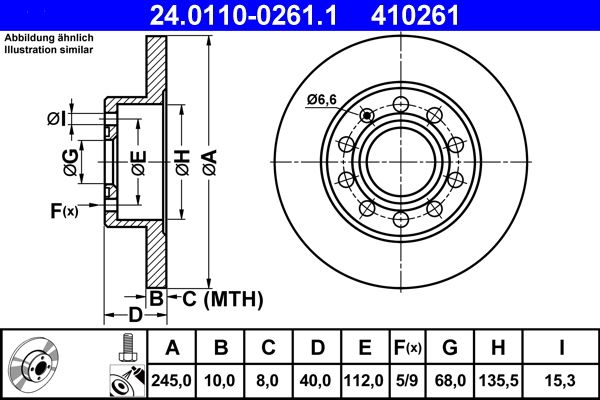

Specifications
  • Outer Diameter [mm]: 245,0
  • Brake Disc Thickness [mm]: 10,0
  • Minimum thickness [mm]: 8,0
  • Brake Disc Type: solid
  • Number of Holes: 5
  • Surface: Coated
  • No. of holes 2: 9
  • Height [mm]: 40,0
  • Centering Diameter [mm]: 68,0
  • Inner Diameter [mm]: 135,5
  • Bolt Hole Circle Ø [mm]: 112,0
  • Bore Diameter [mm]: 15,3
  • Supplementary Article/Info 2: with bolts/screws
  • MAPP code available
  • Test Mark: E1 90R-02C0165/1152
