Catalogue

You must select a vehicle.

Brake Disc

ATE

Reference: 24.0110-0111.1

OTTO code: ATE-410111

Shipped: within 24hrs

4
NB: any items ordered above this stock level will be placed on backorder.

€ 35.77 incl. VAT

  • SEAT: 357 615 601
  • SEAT: 191 615 601 A
  • SEAT: 1HM 615 601
  • SEAT: 6N0 615 601
  • VAG: 357 615 601
  • VAG: 191 615 601
  • VAG: 191 615 601 B
  • VAG: 6N0 615 601
  • VAG: 191 615 601 A
  • VAG: 1HM 615 601

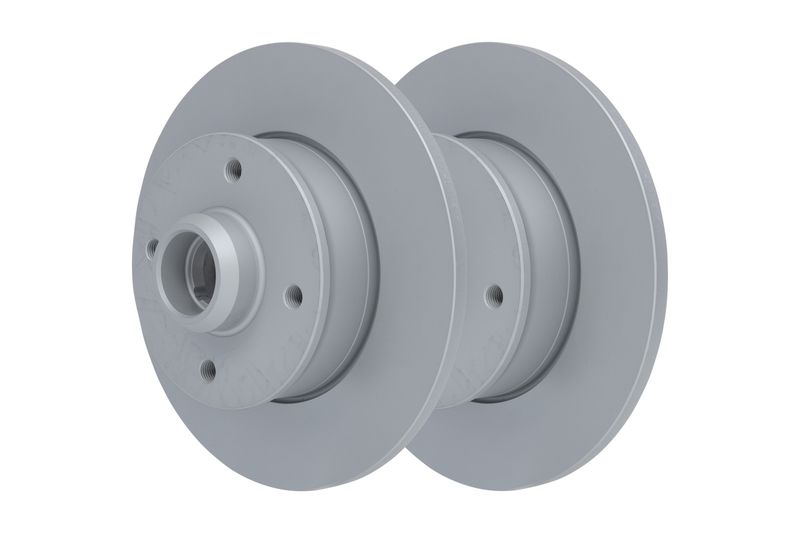

ATE Brake Disc 24.0110-0111.1
Specifications
  • Outer diameter [mm]: 226,0
  • Brake Disc Thickness [mm]: 10,0
  • Minimum thickness [mm]: 8,0
  • Brake Disc Type: Solid
  • Number of Holes: 4
  • Surface: Coated
  • Supplementary Article/Info 2: without ABS sensor ring
  • Supplementary Article/Info 2: without wheel bearing
  • Bolt Hole Circle Ø [mm]: 100,0
  • Height [mm]: 71,2
  • Centering Diameter [mm]: 39,8
  • Support plate diameter [mm]: 50,2
  • Inner diameter [mm]: 121,4
  • Thread Size: M12x1,5
  • MAPP code available
