Brake Disc

ATE

Reference: 24.0122-0196.1

OTTO code: ATE-422196

Shipped: This product is not currently in stock

€ 77.11 incl. VAT

Add to cart
  • MERCEDES-BENZ: 904 423 01 12
  • MERCEDES-BENZ: A 904 423 02 12
  • MERCEDES-BENZ: 904 423 03 12
  • MERCEDES-BENZ: A 904 423 01 12
  • MERCEDES-BENZ: 904 423 02 12
  • MERCEDES-BENZ: A 904 423 03 12
  • VAG: 2D0 615 601 B

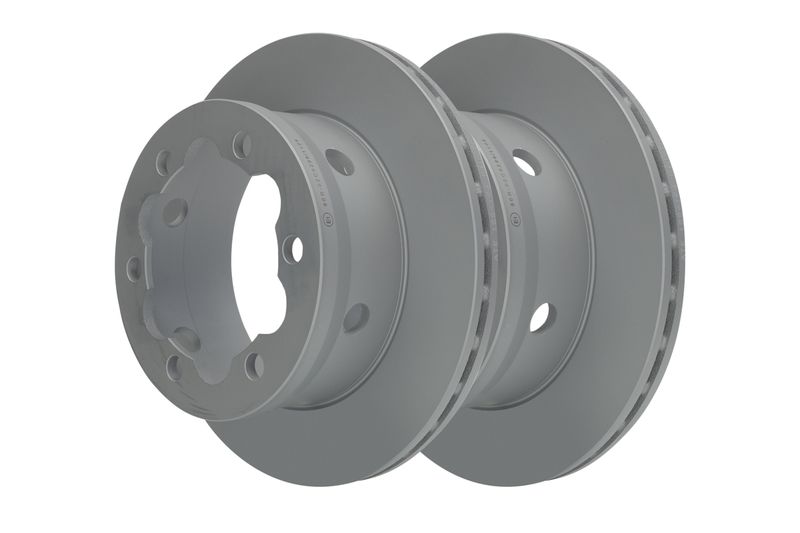

ATE Brake Disc 24.0122-0196.1

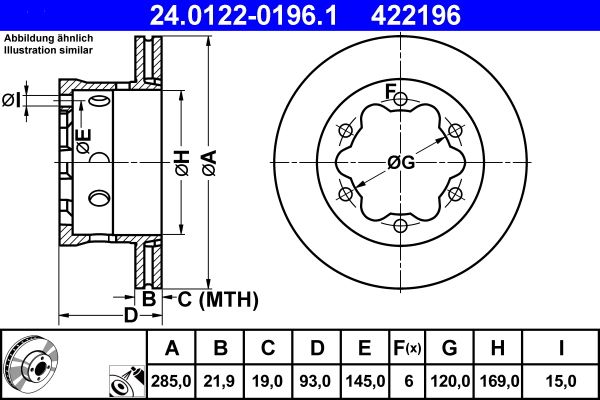

Specifications
  • Outer diameter [mm]: 285,0
  • Brake Disc Thickness [mm]: 21,9
  • Minimum thickness [mm]: 19,0
  • Brake Disc Type: Vented
  • Machining: Alloyed / High-carbon
  • Surface: Coated
  • Number of Holes: 6
  • MAPP code available
  • Height [mm]: 93,0
  • Centering Diameter [mm]: 120,0
  • Inner diameter [mm]: 169,0
  • Bolt Hole Circle Ø [mm]: 145,0
  • Bore Ø [mm]: 15,0
  • Test Mark: E1 90R-02C0296/1106
