Brake Disc

ATE

Reference: 24.0122-0161.1

OTTO code: ATE-422161

Shipped: within 24hrs

2
NB: any items ordered above this stock level will be placed on backorder.

€ 64.99 incl. VAT

  • MERCEDES-BENZ: 901 421 03 12 / 9014210312
  • MERCEDES-BENZ: 902 421 03 12 / 9024210312
  • MERCEDES-BENZ: 902 421 04 12 / 9024210412
  • MERCEDES-BENZ: 902 421 06 12 / 9024210612
  • MERCEDES-BENZ: 902 421 07 12 / 9024210712
  • MERCEDES-BENZ: 902 421 09 12 / 9024210912
  • MERCEDES-BENZ: A 902 421 04 12 / A9024210412
  • MERCEDES-BENZ: A 902 421 06 12 / A9024210612
  • MERCEDES-BENZ: A 902 421 07 12 / A9024210712
  • MERCEDES-BENZ: A 902 421 09 12 / A9024210912
  • MERCEDES-BENZ: A 901 421 03 12 / A9014210312
  • MERCEDES-BENZ: A 902 421 03 12 / A9024210312
  • VAG: 2D0 615 301 A / 2D0615301A
  • VAG: 2D0 615 301 B / 2D0615301B
  • VAG: 2D0 615 301 C / 2D0615301C
  • VAG: 2D0 615 301 D / 2D0615301D

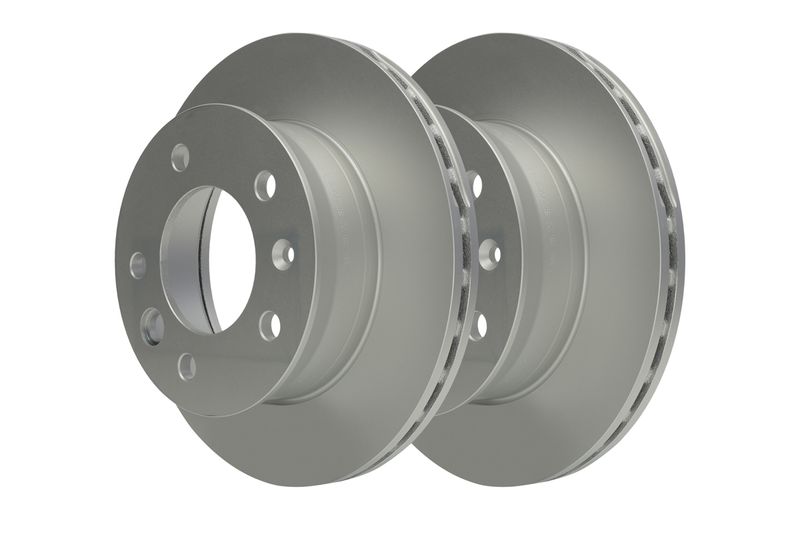

ATE Brake Disc 24.0122-0161.1

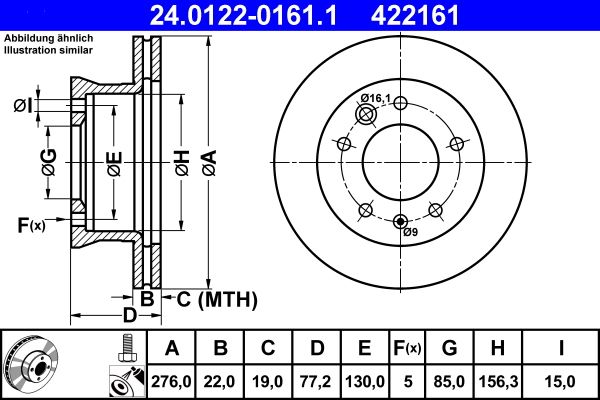

Specifications
  • Outer Diameter [mm]: 276,0
  • Brake Disc Thickness [mm]: 22,0
  • Minimum thickness [mm]: 19,0
  • Brake Disc Type: Vented
  • Number of Holes: 5
  • Machining: Alloyed/High-carbon
  • Surface: Coated
  • Supplementary Article/Info 2: with bolts/screws
  • MAPP code available
  • Bolt Hole Circle Ø [mm]: 130,0
  • Height [mm]: 77,2
  • Centering Diameter [mm]: 85,0
  • Inner Diameter [mm]: 156,3
  • Bore Diameter [mm]: 15,0
  • Test Mark: E1 90R-02C0115/0425
