- VAG: 437 615 301 / 437615301
- VAG: 437 615 301 A / 437615301A

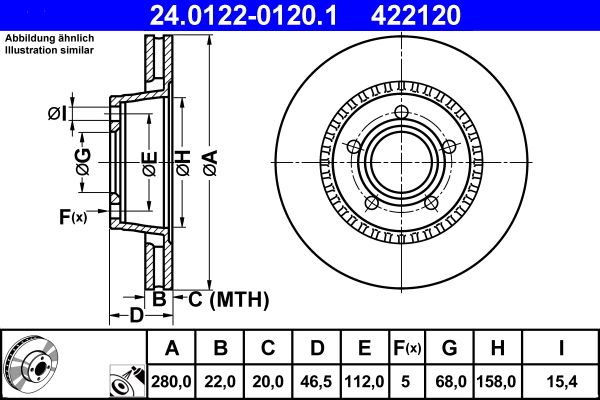

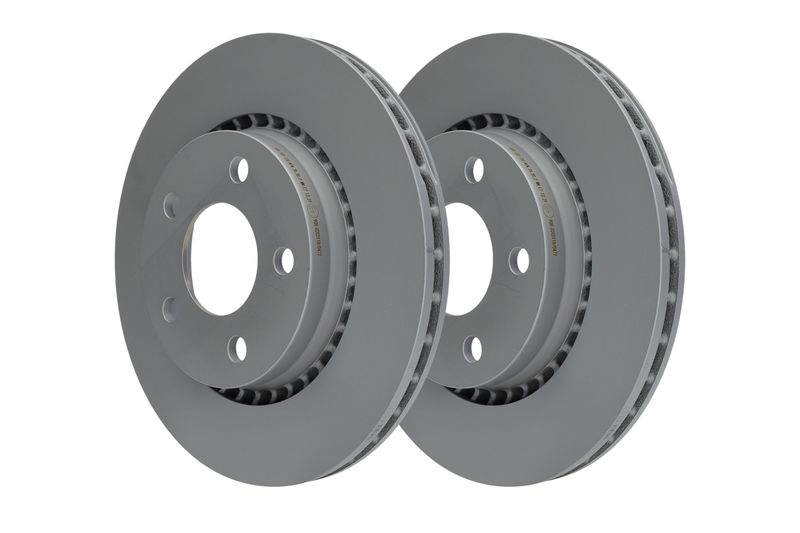

ATE Brake Disc 24.0122-0120.1
Specifications
- Outer Diameter [mm]: 280,0
- Brake Disc Thickness [mm]: 22,0
- Minimum thickness [mm]: 20,0
- Brake Disc Type: Vented
- Machining: Alloyed/High-carbon
- Surface: Coated
- Number of Holes: 5
- MAPP code available
- Bolt Hole Circle Ø [mm]: 112,0
- Height [mm]: 46,5
- Centering Diameter [mm]: 68,0
- Inner Diameter [mm]: 158,0
- Bore Diameter [mm]: 15,4
- Test Mark: E1 90R-02C0118/0477
