Catalogue

You must select a vehicle.

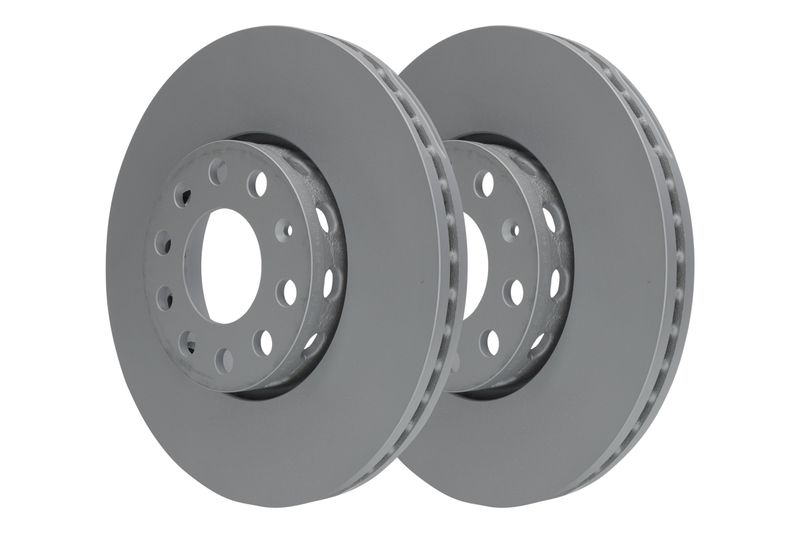

Brake Disc

ATE

Reference: 24.0125-0105.1

OTTO code: ATE-425105

Shipped: This product is not currently in stock

€ 68.73 incl. VAT

Add to cart
  • SEAT: 4A0 615 301 C / 4A0615301C
  • SEAT: 4A0 615 301 D / 4A0615301D
  • SEAT: 4A0 615 301 E / 4A0615301E
  • SEAT: 8E0 615 301 Q / 8E0615301Q
  • SKODA: 4A0 615 301 C / 4A0615301C
  • SKODA: 8E0 615 301 Q / 8E0615301Q
  • SKODA: 4A0 615 301 D / 4A0615301D
  • SKODA: 4A0 615 301 E / 4A0615301E
  • VAG: 4A0 615 301 C / 4A0615301C
  • VAG: 4A0 615 301 E / 4A0615301E
  • VAG: 4A0 615 301 D / 4A0615301D
  • VAG: 8E0 615 301 Q / 8E0615301Q
ATE Brake Disc 24.0125-0105.1

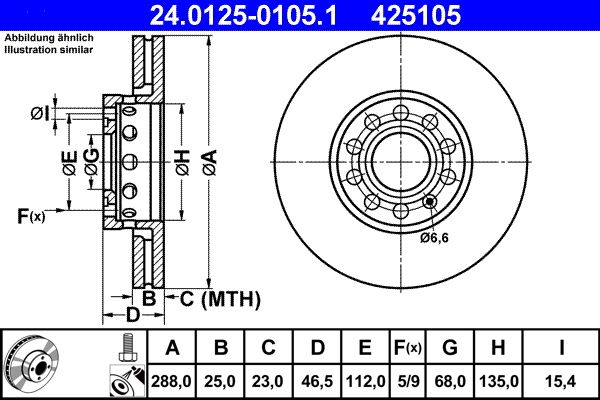

Specifications
  • Outer Diameter [mm]: 288,0
  • Brake Disc Thickness [mm]: 25,0
  • Minimum thickness [mm]: 23,0
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Supplementary Article/Info 2: with bolts/screws
  • MAPP code available
  • No. of holes 2: 9
  • Bolt Hole Circle Ø [mm]: 112,0
  • Height [mm]: 46,5
  • Centering Diameter [mm]: 68,0
  • Inner Diameter [mm]: 135,0
  • Bore Diameter [mm]: 15,4
  • Test Mark: E1 90R-02C0118/0064
