Brake Disc

ATE

Reference: 24.0122-0151.1

OTTO code: ATE-422151

Shipped: within 24hrs

€ 49.13 incl. VAT

  • SEAT: 1J0 615 301 D
  • SEAT: 1J0 615 301 L
  • SEAT: 6R0 615 301
  • SEAT: 6QD 615 301
  • SEAT: 6R0 615 301 C
  • SKODA: 1J0 615 301 D
  • SKODA: 1J0 615 301 L
  • SKODA: 6R0 615 301
  • SKODA: 6QD 615 301
  • SKODA: 6R0 615 301 C
  • VAG: 1J0 615 301 D
  • VAG: 1J0 615 301 L
  • VAG: 8Z0 615 301 B
  • VAG: 8Z0 615 301 D
  • VAG: 6R0 615 301
  • VAG: 6QD 615 301
  • VAG: 6R0 615 301 C

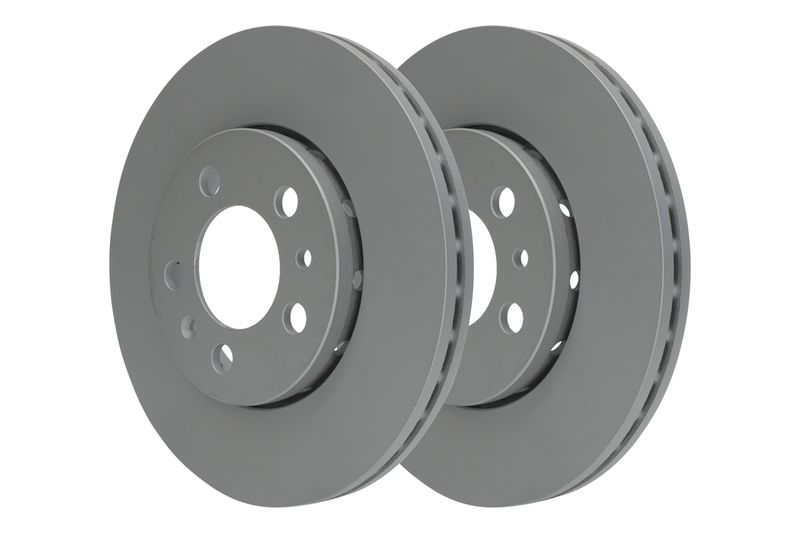

ATE Brake Disc 24.0122-0151.1
Specifications
  • Outer Diameter [mm]: 256,0
  • Brake Disc Thickness [mm]: 22,0
  • Minimum thickness [mm]: 19,0
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Supplementary Article/Info 2: with bolts/screws
  • MAPP code available
  • Bolt Hole Circle Ø [mm]: 100,0
  • Height [mm]: 36,7
  • Centering Diameter [mm]: 65,0
  • Inner Diameter [mm]: 133,5
  • Bore Ø [mm]: 15,6
  • Test Mark: E1 90R-02C0118/0141
