Catalogue

You must select a vehicle.

Brake Disc

ATE

Reference: 24.0125-0184.1

OTTO code: ATE-425184

Shipped: within 24hrs

4
NB: any items ordered above this stock level will be placed on backorder.

€ 92.57 incl. VAT

  • VAG: 8K0 615 301 / 8K0615301
  • VAG: 8W0 615 301 T / 8W0615301T
  • VAG: 8W0 615 301 G / 8W0615301G

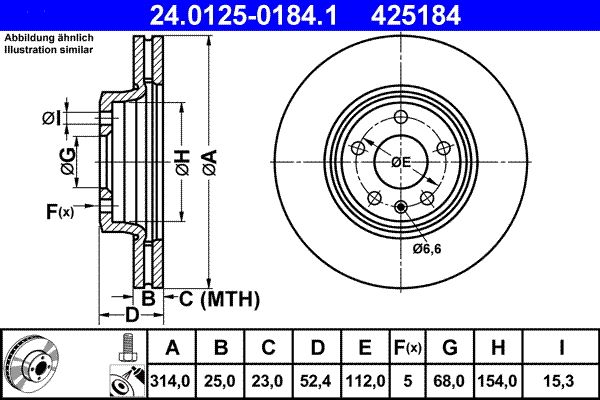

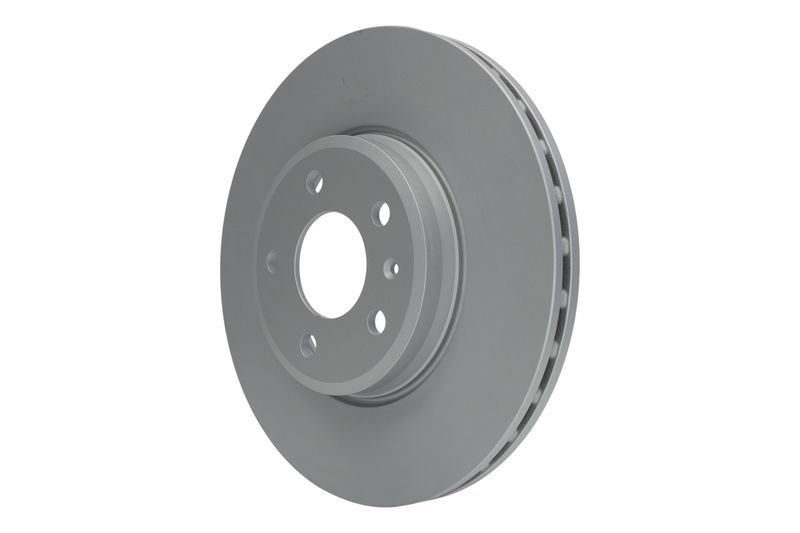

ATE Brake Disc 24.0125-0184.1
Specifications
  • Outer Diameter [mm]: 314,0
  • Brake Disc Thickness [mm]: 25,0
  • Minimum thickness [mm]: 23,0
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Supplementary Article/Info 2: with bolts/screws
  • MAPP code available
  • Bolt Hole Circle Ø [mm]: 112,0
  • Height [mm]: 52,4
  • Centering Diameter [mm]: 68,0
  • Inner Diameter [mm]: 154,0
  • Bore Diameter [mm]: 15,3
  • Test Mark: E1 90R-02C0115/1326
