Catalogue

You must select a vehicle.

Brake Drum

ATE

Reference: 24.0226-8001.1

OTTO code: ATE-480051

Shipped: within 24hrs

1
NB: any items ordered above this stock level will be placed on backorder.

€ 99.42 incl. VAT

  • VAG: 701 609 617

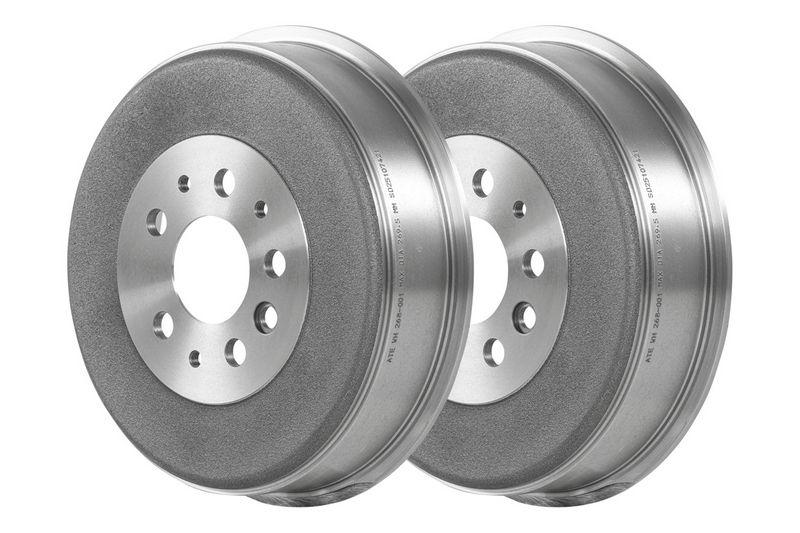

ATE Brake Drum 24.0226-8001.1

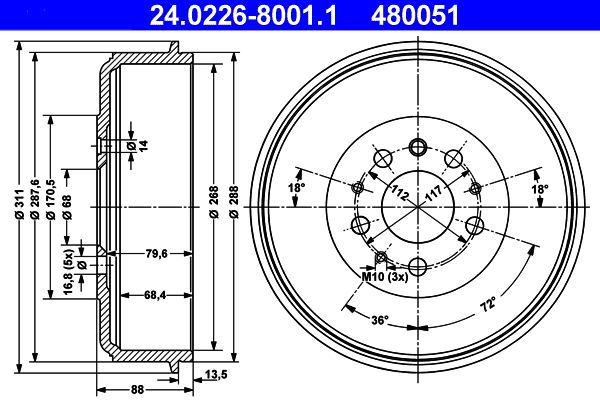

Specifications
  • Brake diameter, inside [mm]: 268,0
  • Max.skimmed drum measure [mm]: 269,5
  • Inner Brake Drum Height [mm]: 68,4
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 112,0
  • Support plate diameter [mm]: 68,4
  • Bore Ø [mm]: 16,8
  • Total Br. Drum Height [mm]: 88,0
  • Brake diameter, outer [mm]: 288,0
  • MAPP code available
  • Test Mark: E1 90R-02D0324/1879
