Brake Drum


Reference: 24.0223-0016.1

OTTO code: ATE-480111

Shipped: This product is not currently in stock

€ 66.05 incl. VAT

Add to cart
  • SKODA: 1J0 609 617 B

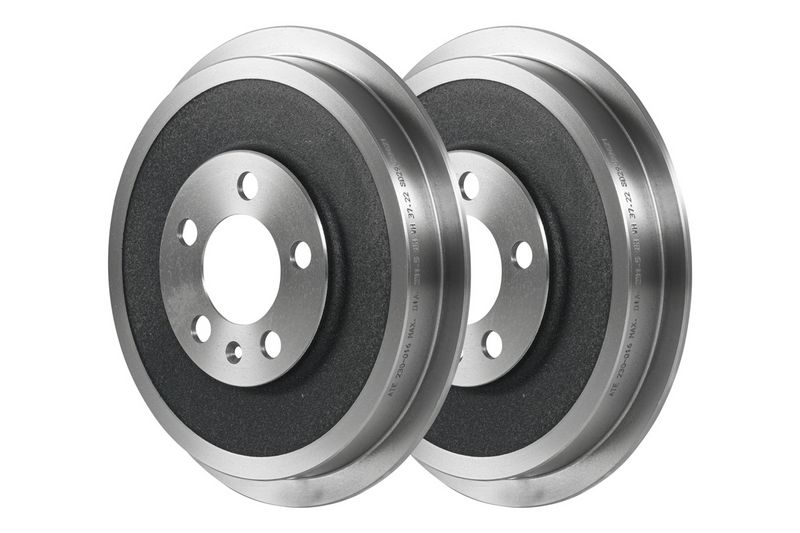

ATE Brake Drum 24.0223-0016.1

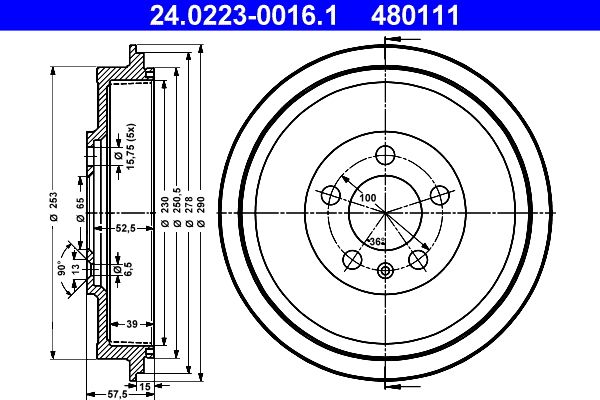

  • Inner brake drum diameter [mm]: 230,0
  • Max.skimmed drum measure [mm]: 231,5
  • Inner Brake Drum Height [mm]: 39,0
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 100,0
  • Support plate diameter [mm]: 65,0
  • Bore Ø [mm]: 15,8
  • Total Br. Drum Height [mm]: 57,5
  • Outer brake drum diameter [mm]: 290,0
  • MAPP code available
