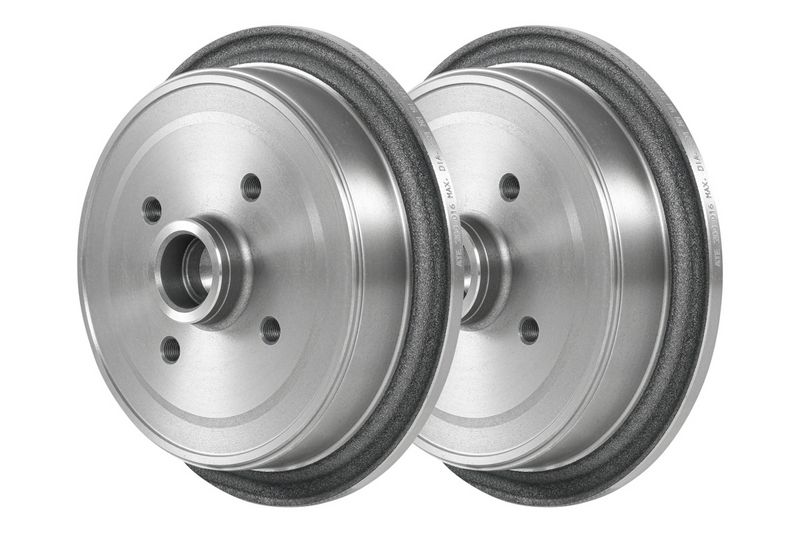

Brake Drum

ATE

Reference: 24.0220-0016.1

OTTO code: ATE-480018

Shipped: within 24hrs

4
NB: any items ordered above this stock level will be placed on backorder.

€ 83.41 incl. VAT

  • VAG: 893 501 615 / 893501615
  • VAG: 811 501 615 B / 811501615B
ATE Brake Drum 24.0220-0016.1

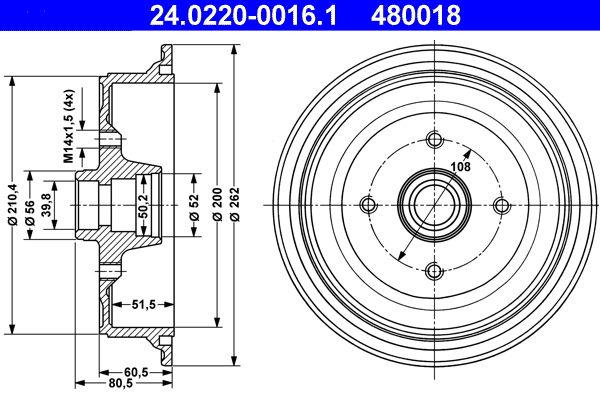

Specifications
  • Supplementary Article/Info 2: without wheel bearing
  • Inner brake drum diameter [mm]: 200,0
  • Max.skimmed drum measure [mm]: 201,0
  • Inner Brake Drum Height [mm]: 51,5
  • Number of Holes: 4
  • Bolt Hole Circle Ø [mm]: 108,0
  • Support plate diameter [mm]: 50,3
  • Thread Size: M14x1,5
  • Total Br. Drum Height [mm]: 80,5
  • Outer brake drum diameter [mm]: 262,0
  • Inner Diameter 2 [mm]: 39,8
  • MAPP code available
