Brake Drum

ATE

Reference: 24.0220-0018.1

OTTO code: ATE-480019

Shipped: This product is not currently in stock

€ 50.50 incl. VAT

Add to cart
  • SEAT: 1H0 501 615 A / 1H0501615A
  • SEAT: 191 501 615 A / 191501615A
  • SEAT: 1H0 501 615 / 1H0501615
  • SEAT: 331 501 615 A / 331501615A
  • SEAT: 5U0 501 615 B / 5U0501615B
  • SEAT: 841 501 615 A / 841501615A
  • SKODA: 1H0 501 615 A / 1H0501615A
  • SKODA: 6U0 501 615 B / 6U0501615B
  • SKODA: 6U0 501 615 A / 6U0501615A
  • SKODA: 115 330 192 / 115330192
  • SKODA: 1H0 501 615 / 1H0501615
  • SKODA: 331 501 615 A / 331501615A
  • SKODA: 5U0 501 615 B / 5U0501615B
  • SKODA: 841 501 615 A / 841501615A
  • SKODA: 191 501 615 A / 191501615A
  • VAG: 191 501 615 A / 191501615A
  • VAG: 323 501 615 / 323501615
  • VAG: 841 501 615 A / 841501615A
  • VAG: 1H0 501 615 A / 1H0501615A
  • VAG: 6U0 501 615 B / 6U0501615B
  • VAG: 1H0 501 615 / 1H0501615
  • VAG: 331 501 615 A / 331501615A
  • VAG: 5U0 501 615 B / 5U0501615B

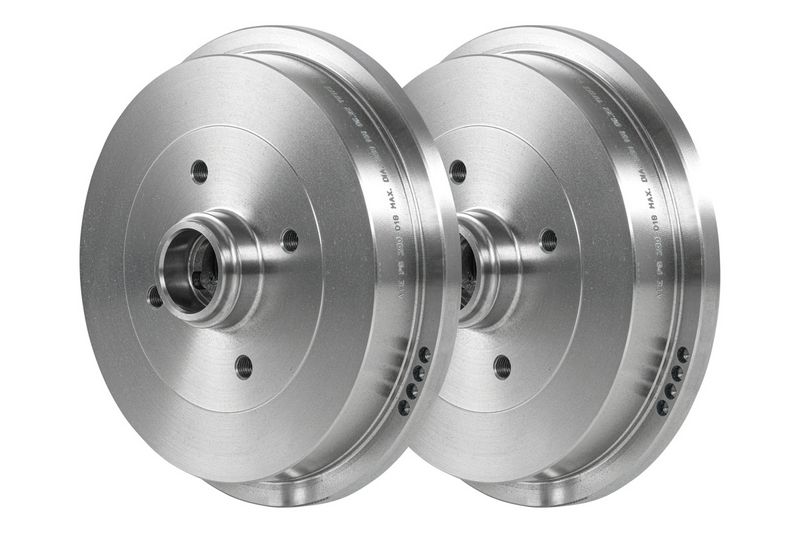

ATE Brake Drum 24.0220-0018.1

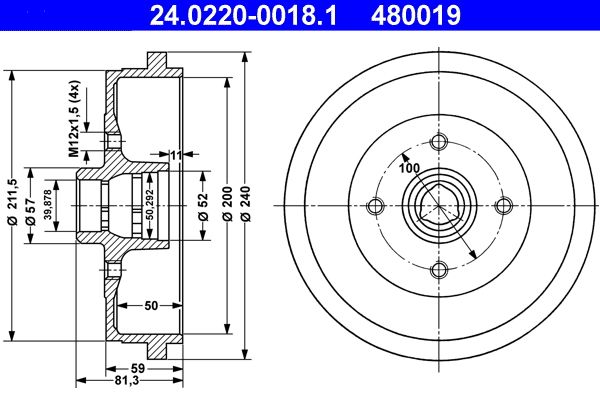

Specifications
  • Supplementary Article/Info 2: without wheel bearing
  • Supplementary Article/Info 2: without ABS sensor ring
  • Inner brake drum diameter [mm]: 200,0
  • Max.skimmed drum measure [mm]: 201,0
  • Inner Brake Drum Height [mm]: 50,0
  • Number of Holes: 4
  • Bolt Hole Circle Ø [mm]: 100,0
  • Thread Size: M12x1,5
  • Total Br. Drum Height [mm]: 81,3
  • Outer brake drum diameter [mm]: 240,0
  • Support plate diameter [mm]: 50,3
  • Inner Diameter 2 [mm]: 39,9
  • Test Mark: E1 90R-02D0955/0094
  • MAPP code available
