Brake Drum

ATE

Reference: 24.0223-0015.1

OTTO code: ATE-480073

Shipped: within 24hrs

€ 77.83 incl. VAT

  • SEAT: 6K9 501 615 / 6K9501615
  • VAG: 6K9 501 615 / 6K9501615

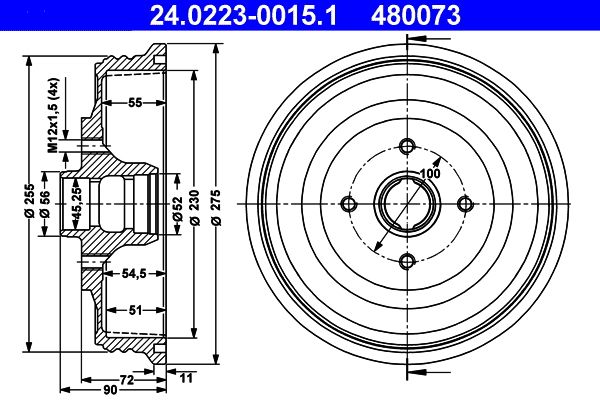

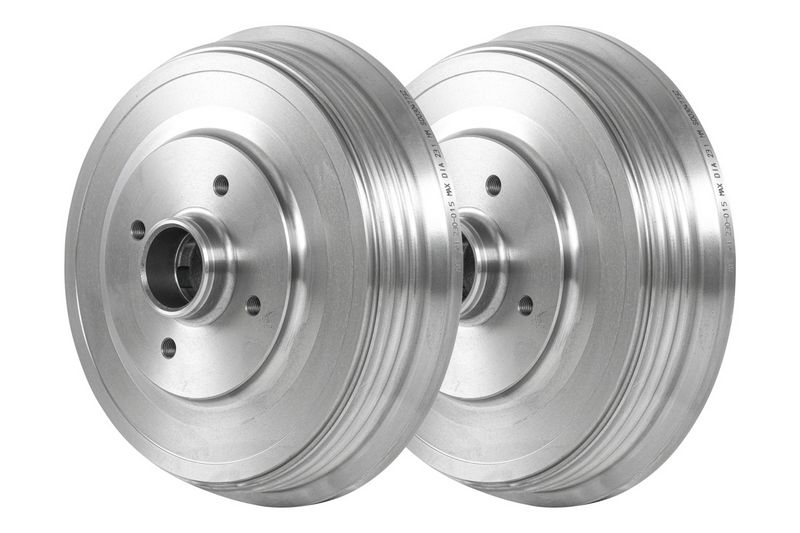

ATE Brake Drum 24.0223-0015.1
Specifications
  • Supplementary Article/Info 2: without wheel bearing
  • Inner brake drum diameter [mm]: 230,0
  • Max.skimmed drum measure [mm]: 231,0
  • Inner Brake Drum Height [mm]: 51,0
  • Number of Holes: 4
  • Bolt Hole Circle Ø [mm]: 100,0
  • Thread Size: M12x1,5
  • Total Br. Drum Height [mm]: 90,0
  • Outer brake drum diameter [mm]: 275,0
  • Support plate diameter [mm]: 52,0
  • Inner Diameter 2 [mm]: 45,3
  • MAPP code available
