Brake Drum

ATE

Reference: 24.0220-0032.1

OTTO code: ATE-480130

Shipped: This product is not currently in stock

€ 38.97 incl. VAT

Add to cart
  • SEAT: 6X0 609 617 A
  • SEAT: 1S0 609 617
  • SKODA: 1S0 609 617
  • VAG: 6X0 609 617 A
  • VAG: 1S0 609 617

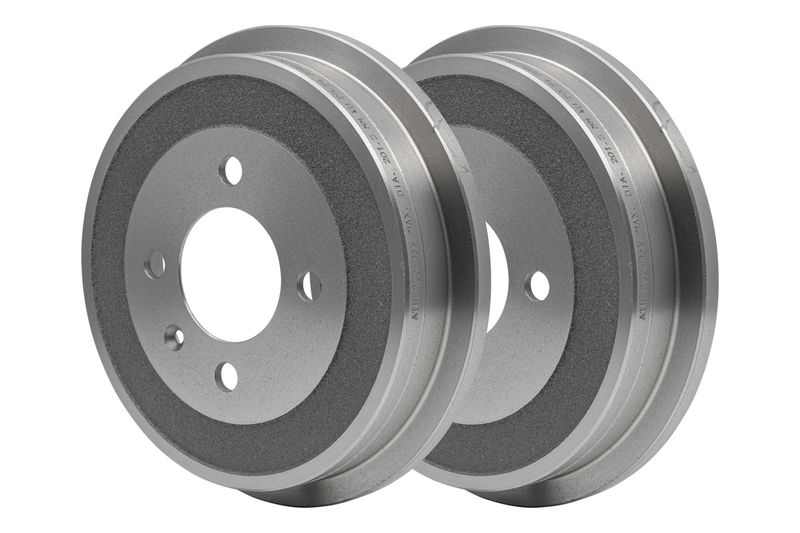

ATE Brake Drum 24.0220-0032.1

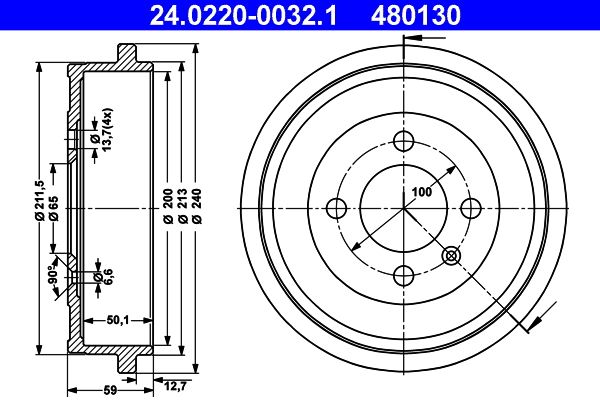

Specifications
  • Brake diameter, inside [mm]: 200,0
  • Max.skimmed drum measure [mm]: 201,5
  • Inner Brake Drum Height [mm]: 50,1
  • Number of Holes: 4
  • Bolt Hole Circle Ø [mm]: 100,0
  • Bore Ø [mm]: 13,7
  • Total Br. Drum Height [mm]: 59,0
  • Brake diameter, outer [mm]: 240,0
  • Support plate diameter [mm]: 65,0
  • MAPP code available
  • Test Mark: E1 90R-02D0324/1877
