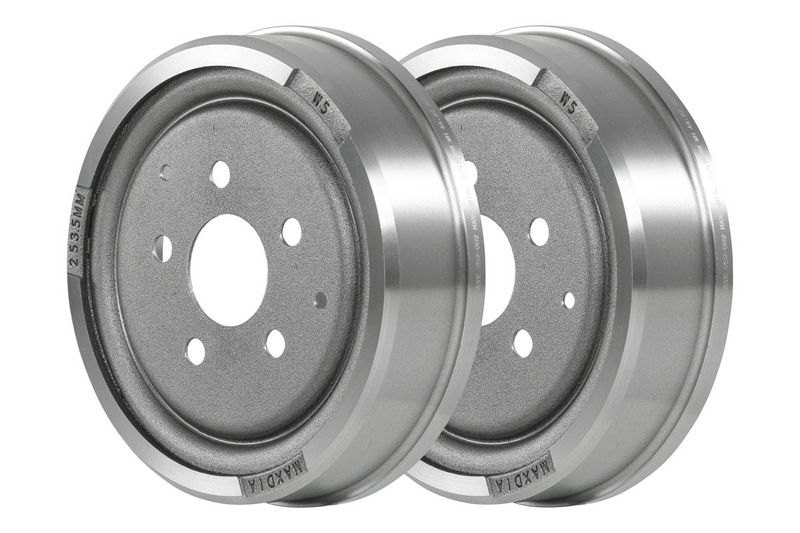

Brake Drum


Reference: 24.0225-2002.2

OTTO code: ATE-480046

Shipped: within 24hrs

NB: any items ordered above this stock level will be placed on backorder.

€ 58.11 incl. VAT

  • VAG: 251 609 615

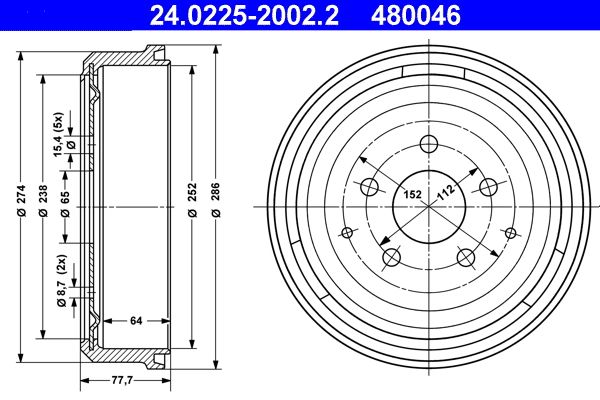

ATE Brake Drum 24.0225-2002.2
  • Inner brake drum diameter [mm]: 252,0
  • Max.skimmed drum measure [mm]: 253,5
  • Inner Brake Drum Height [mm]: 64,0
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 112,0
  • Bore Ø [mm]: 15,4
  • Total Br. Drum Height [mm]: 77,7
  • Outer brake drum diameter [mm]: 286,0
  • Support plate diameter [mm]: 65,0
  • MAPP code available
