Brake Disc

ATE

Reference: 24.0128-0123.1

OTTO code: ATE-428123

Shipped: This product is not currently in stock

€ 92.36 incl. VAT

Add to cart
  • VOLVO: 272404
  • VOLVO: 274170
  • VOLVO: 9492715
  • VOLVO: 274559
  • VOLVO: 31262707
  • VOLVO: 31400740
  • VOLVO: 31471827

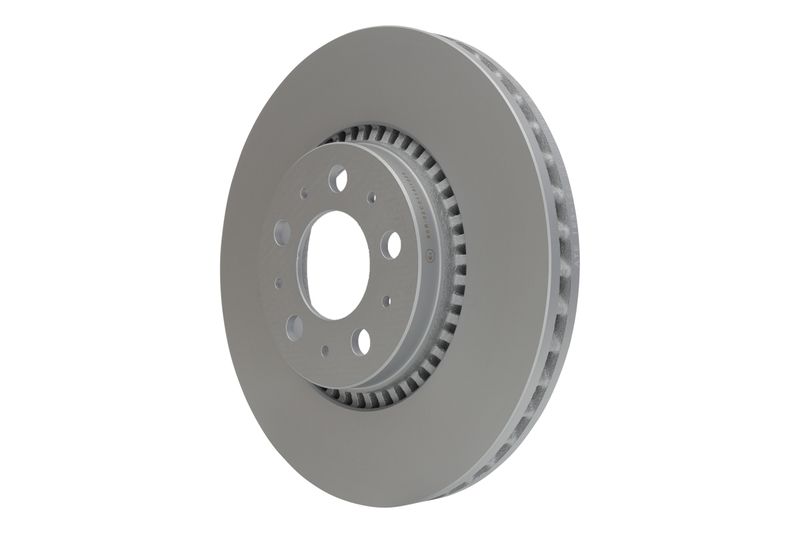

ATE Brake Disc 24.0128-0123.1

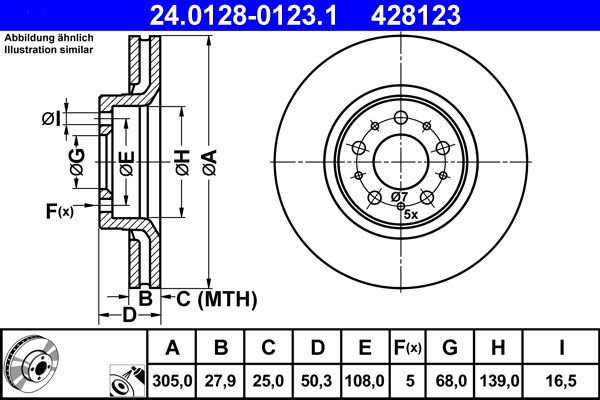

Specifications
  • Outer Diameter [mm]: 305,0
  • Brake Disc Thickness [mm]: 27,9
  • Minimum thickness [mm]: 25,0
  • Brake Disc Type: Vented
  • Number of Holes: 5
  • Surface: Coated
  • MAPP code available
  • Height [mm]: 50,3
  • Centering Diameter [mm]: 68,0
  • Inner Diameter [mm]: 139,0
  • Bolt Hole Circle Ø [mm]: 108,0
  • Bore Diameter [mm]: 16,5
  • Test Mark: E1 90R-02C0118/1026
