Brake Drum

ATE

Reference: 24.0220-0039.1

OTTO code: ATE-480163

Shipped: within 24hrs

2
NB: any items ordered above this stock level will be placed on backorder.

€ 37.00 incl. VAT

  • OPEL: 4 18 000 / 418000
  • OPEL: 9196287
  • VAUXHALL: 4 18 000 / 418000
  • VAUXHALL: 9196287

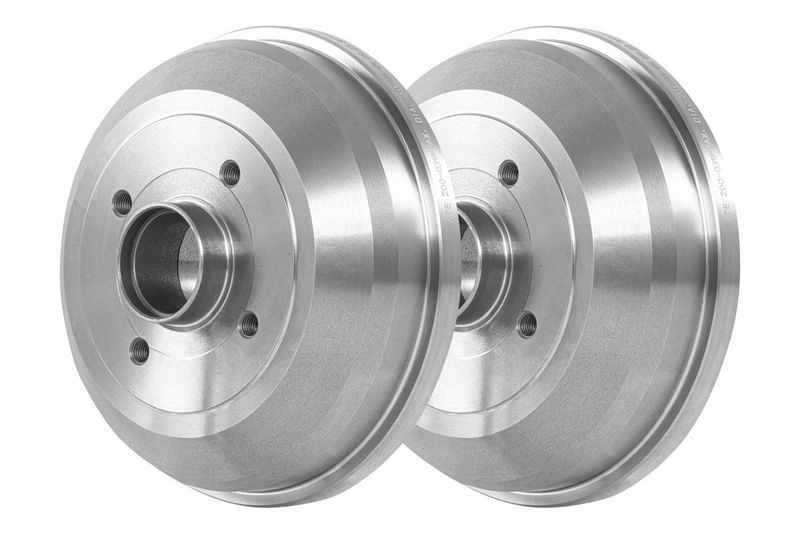

ATE Brake Drum 24.0220-0039.1

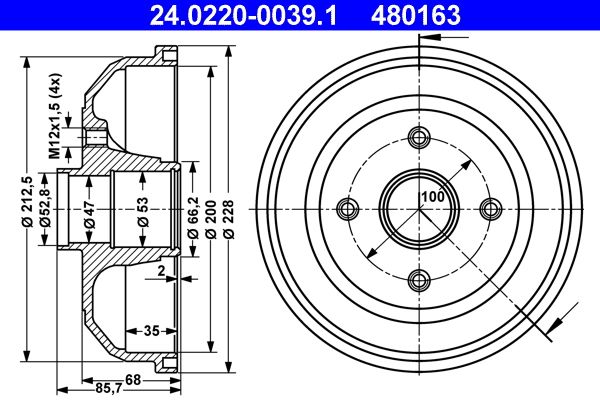

Specifications
  • Supplementary Article/Info 2: without wheel bearing
  • Supplementary Article/Info 2: without ABS sensor ring
  • Inner brake drum diameter [mm]: 200,0
  • Max.skimmed drum measure [mm]: 201,0
  • Inner Brake Drum Height [mm]: 35,0
  • Number of Holes: 4
  • Bolt Hole Circle Ø [mm]: 100,0
  • Thread Size: M12x1,5
  • Total Br. Drum Height [mm]: 85,7
  • Outer brake drum diameter [mm]: 228,0
  • Support plate diameter [mm]: 53,0
  • Inner Diameter 2 [mm]: 47,0
  • MAPP code available
