Catalogue

You must select a vehicle.

Brake Disc

ATE

Reference: 24.0125-0148.1

OTTO code: ATE-425148

Shipped: within 24hrs

2
NB: any items ordered above this stock level will be placed on backorder.

€ 73.31 incl. VAT

  • OPEL: 5 69 006 / 569006
  • OPEL: 93175376
  • VAUXHALL: 93175376
  • VAUXHALL: 5 69 006 / 569006

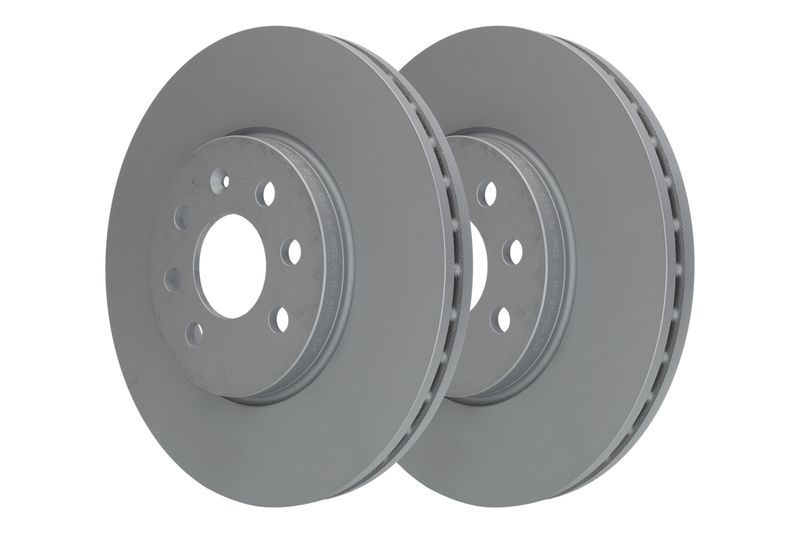

ATE Brake Disc 24.0125-0148.1

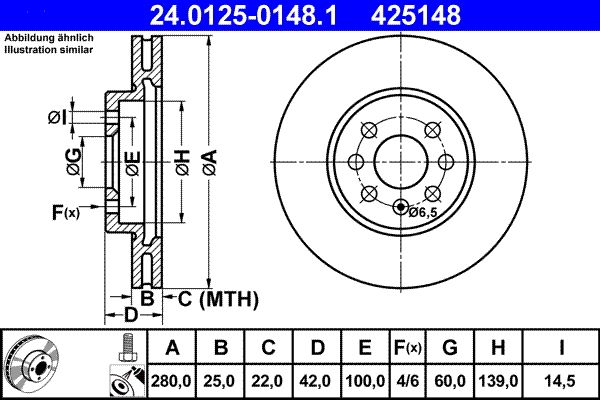

Specifications
  • Outer Diameter [mm]: 280,0
  • Brake Disc Thickness [mm]: 25,0
  • Minimum thickness [mm]: 22,0
  • Brake Disc Type: Vented
  • Machining: Alloyed/High-carbon
  • Surface: Coated
  • Number of Holes: 4
  • No. of holes 2: 6
  • Supplementary Article/Info 2: with bolts/screws
  • MAPP code available
  • Bolt Hole Circle Ø [mm]: 100,0
  • Height [mm]: 42,0
  • Centering Diameter [mm]: 60,0
  • Inner Diameter [mm]: 139,0
  • Bore Diameter [mm]: 14,5
  • Test Mark: E1 90R-02C0115/0389
