Brake Drum

ATE

Reference: 24.0225-4003.1

OTTO code: ATE-480049

Shipped: This product is not currently in stock

€ 83.53 incl. VAT

Add to cart
  • MERCEDES-BENZ: 631 423 00 01 / 6314230001
  • MERCEDES-BENZ: A 631 423 00 01 / A6314230001

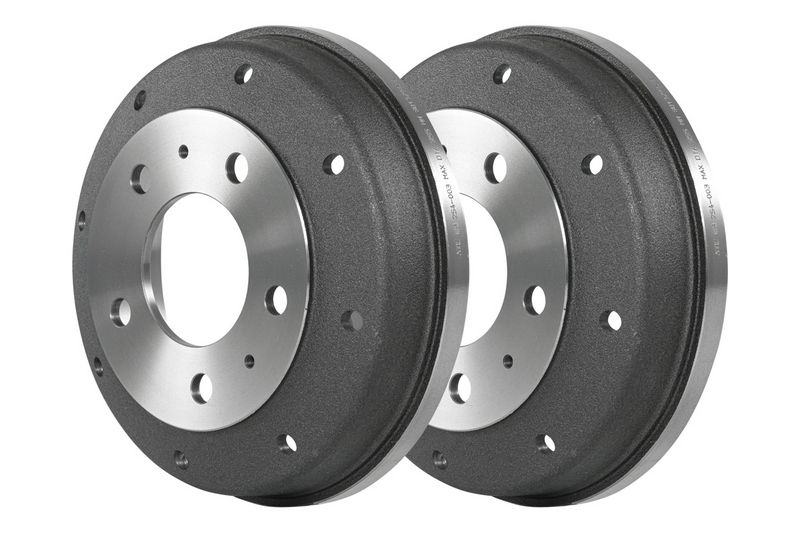

ATE Brake Drum 24.0225-4003.1

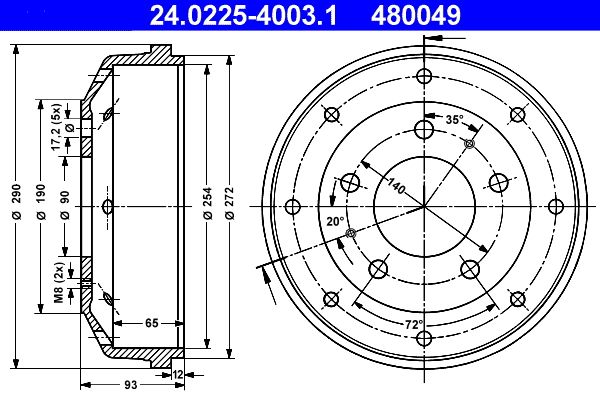

Specifications
  • Inner brake drum diameter [mm]: 254,0
  • max. brake drum reboring dimension [mm]: 255,0
  • Inner brake drum height [mm]: 65,0
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 140,0
  • Bore Diameter [mm]: 17,2
  • Total brake drum height [mm]: 93,0
  • Outer brake drum diameter [mm]: 272,0
  • Support plate diameter [mm]: 90,0
  • MAPP code available
