Catalogue

You must select a vehicle.

Brake Drum

ATE

Reference: 24.0218-0023.1

OTTO code: ATE-480077

Shipped: within 24hrs

2
NB: any items ordered above this stock level will be placed on backorder.

€ 36.44 incl. VAT

  • MERCEDES-BENZ: 168 423 02 01 / 1684230201
  • MERCEDES-BENZ: 168 423 04 01 / 1684230401
  • MERCEDES-BENZ: A 168 423 02 01 / A1684230201
  • MERCEDES-BENZ: A 168 423 04 01 / A1684230401

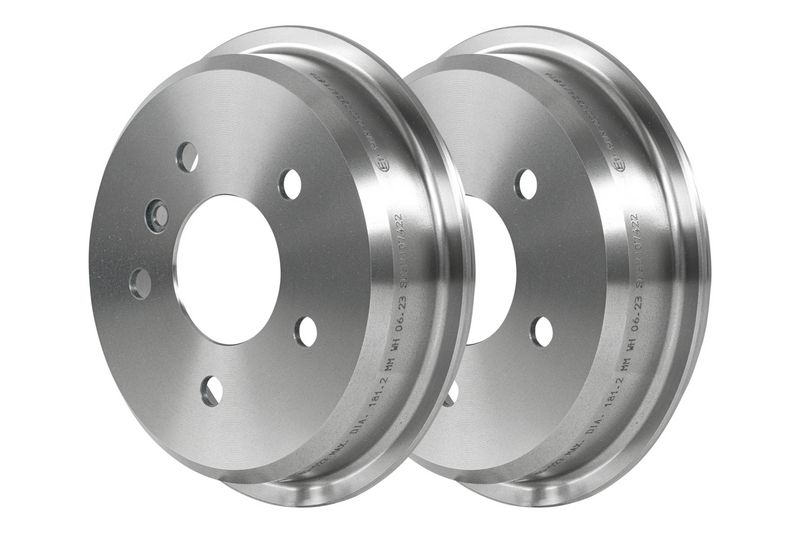

ATE Brake Drum 24.0218-0023.1
Specifications
  • Inner brake drum diameter [mm]: 180,0
  • Max.skimmed drum measure [mm]: 181,2
  • Inner Brake Drum Height [mm]: 48,0
  • Number of Holes: 5
  • Support plate diameter [mm]: 67,0
  • Bolt Hole Circle Ø [mm]: 112,0
  • Bore Diameter [mm]: 13,3
  • Total Br. Drum Height [mm]: 57,5
  • Outer brake drum diameter [mm]: 220,0
  • Test Mark: E1 90R-02D0324/1876
  • MAPP code available
