Brake Disc

ATE

Reference: 24.0110-0228.1

OTTO code: ATE-410228

Shipped: This product is not currently in stock

€ 51.60 incl. VAT

Add to cart
  • MERCEDES-BENZ: 638 423 01 12 / 6384230112
  • MERCEDES-BENZ: A 638 423 01 12 / A6384230112

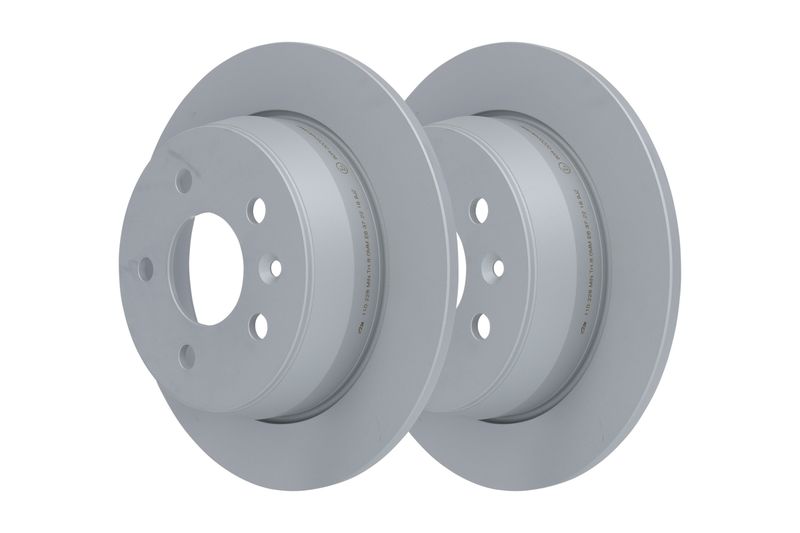

ATE Brake Disc 24.0110-0228.1

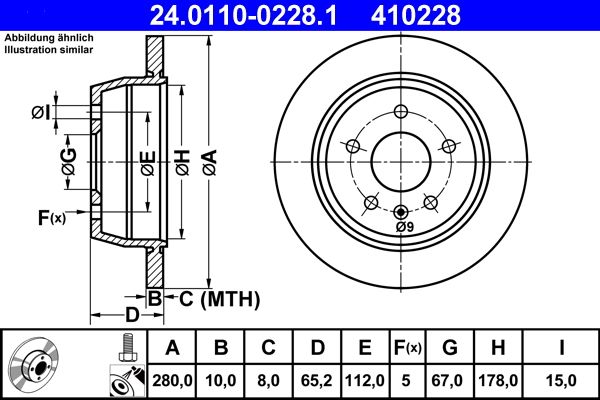

Specifications
  • Outer Diameter [mm]: 280,0
  • Brake Disc Thickness [mm]: 10,0
  • Minimum thickness [mm]: 8,0
  • Brake Disc Type: solid
  • Number of Holes: 5
  • Surface: Coated
  • Machining: Alloyed/High-carbon
  • Bolt Hole Circle Ø [mm]: 112,0
  • Height [mm]: 65,2
  • Centering Diameter [mm]: 67,0
  • Inner Diameter [mm]: 178,0
  • Bore Diameter [mm]: 15,0
  • Supplementary Article/Info 2: with bolts/screws
  • MAPP code available
  • Test Mark: E1 90R-02C0248/0980
