Brake Disc

ATE

Reference: 24.0132-0114.1

OTTO code: ATE-432114

Shipped: within 24hrs

€ 116.60 incl. VAT

  • MERCEDES-BENZ: 163 421 03 12
  • MERCEDES-BENZ: 163 421 05 12
  • MERCEDES-BENZ: A 163 421 03 12
  • MERCEDES-BENZ: A 163 421 05 12

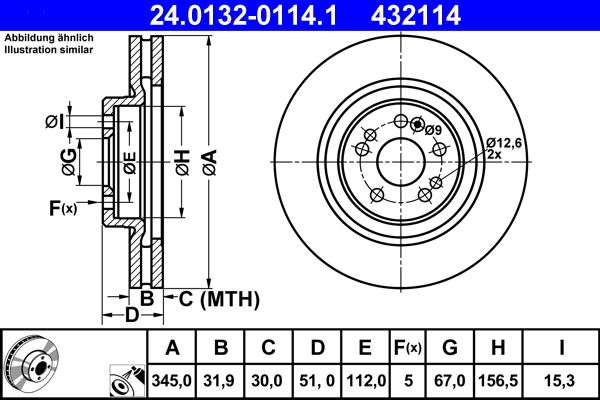

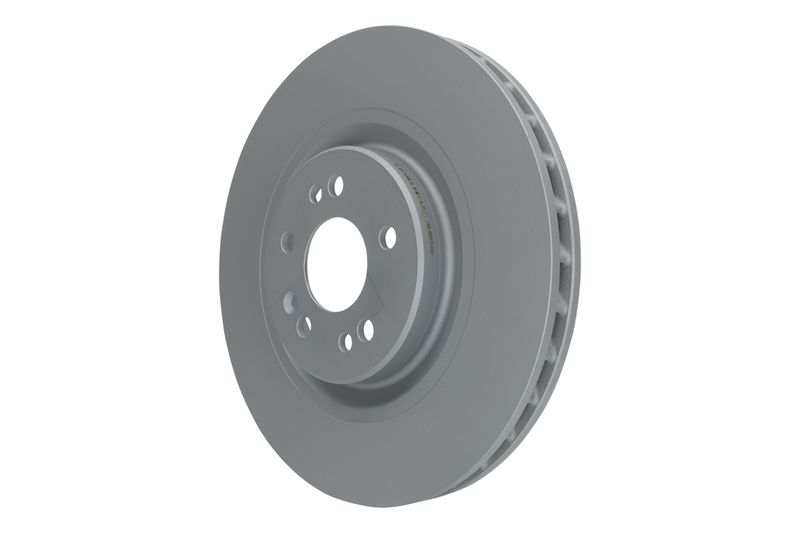

ATE Brake Disc 24.0132-0114.1
Specifications
  • Outer Diameter [mm]: 345,0
  • Brake Disc Thickness [mm]: 31,9
  • Minimum thickness [mm]: 30,0
  • Brake Disc Type: Vented
  • Number of Holes: 5
  • Machining: High-carbon
  • Surface: Coated
  • Height [mm]: 51,0
  • Centering Diameter [mm]: 67,0
  • Inner Diameter [mm]: 156,5
  • Bolt Hole Circle Ø [mm]: 112,0
  • Bore Ø [mm]: 15,3
  • MAPP code available
  • Test Mark: E1 90R-02C0115/0762
