Catalogue

You must select a vehicle.

Brake Disc

ATE

Reference: 24.0128-0163.1

OTTO code: ATE-428163

Shipped: within 24hrs

2
NB: any items ordered above this stock level will be placed on backorder.

€ 112.02 incl. VAT

  • MERCEDES-BENZ: 230 421 04 12 / 2304210412
  • MERCEDES-BENZ: A 230 421 04 12 / A2304210412

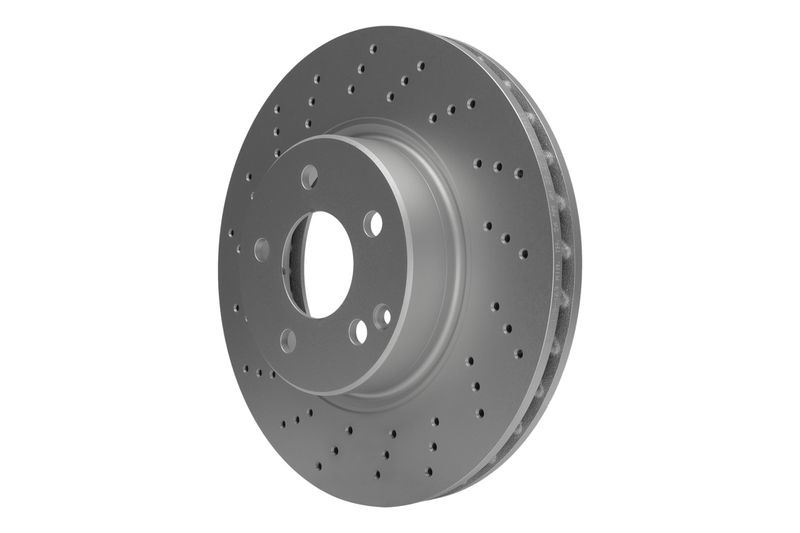

ATE Brake Disc 24.0128-0163.1

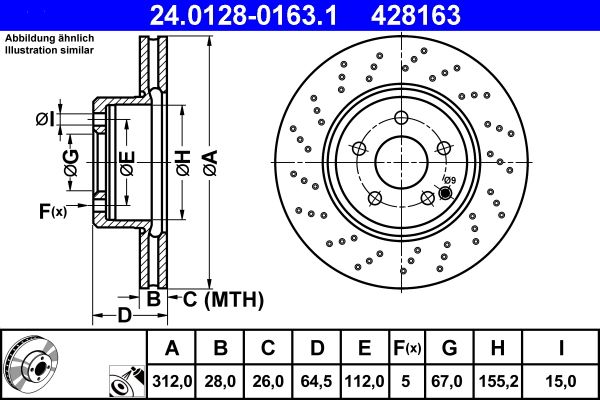

Specifications
  • Outer Diameter [mm]: 312,0
  • Brake Disc Thickness [mm]: 28,0
  • Minimum thickness [mm]: 26,0
  • Brake Disc Type: perforated/vented
  • Machining: Alloyed/High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • MAPP code available
  • Bolt Hole Circle Ø [mm]: 112,0
  • Height [mm]: 64,5
  • Centering Diameter [mm]: 67,0
  • Inner Diameter [mm]: 155,2
  • Bore Diameter [mm]: 15,0
  • Test Mark: E1 90R-02C0640/1128
