Brake Disc

ATE

Reference: 24.0128-0125.1

OTTO code: ATE-428125

Shipped: within 24hrs

2
NB: any items ordered above this stock level will be placed on backorder.

€ 105.73 incl. VAT

  • MERCEDES-BENZ: 220 421 09 12 / 2204210912
  • MERCEDES-BENZ: A 220 421 09 12 / A2204210912

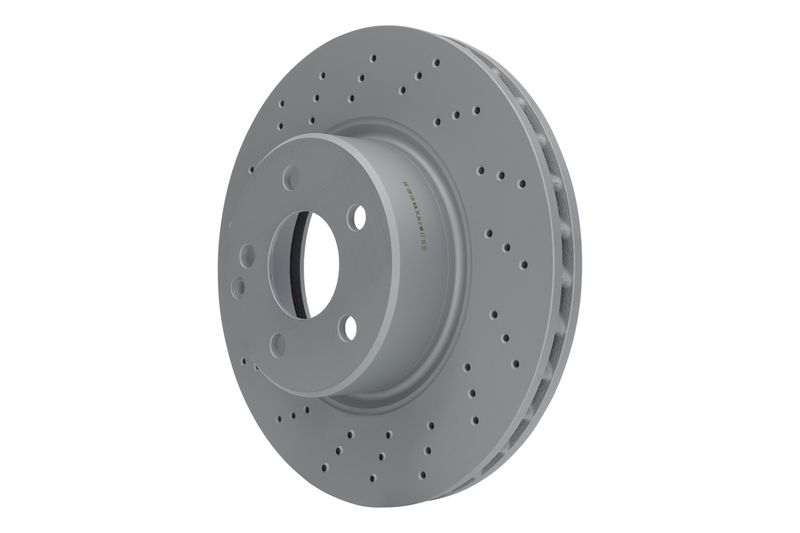

ATE Brake Disc 24.0128-0125.1

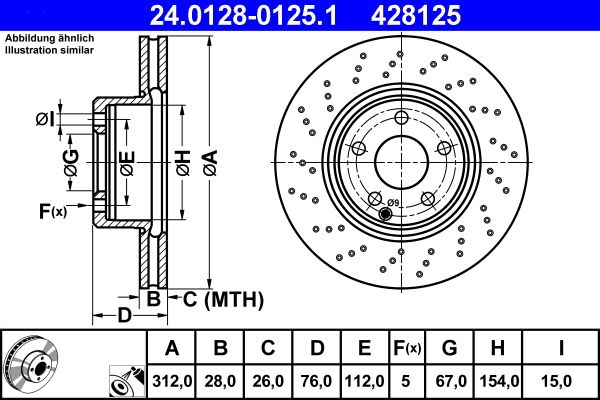

Specifications
  • Outer Diameter [mm]: 312,0
  • Brake Disc Thickness [mm]: 28,0
  • Minimum thickness [mm]: 26,0
  • Brake Disc Type: perforated/vented
  • Machining: Alloyed/High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • MAPP code available
  • Bolt Hole Circle Ø [mm]: 112,0
  • Height [mm]: 76,0
  • Centering Diameter [mm]: 67,0
  • Inner Diameter [mm]: 154,0
  • Bore Diameter [mm]: 15,0
  • Test Mark: E1 90R-02C0640/1128
