Brake Disc

ATE

Reference: 24.0122-0106.1

OTTO code: ATE-422106

Shipped: within 24hrs

4
NB: any items ordered above this stock level will be placed on backorder.

€ 109.61 incl. VAT

  • MERCEDES-BENZ: 116 420 01 72 / 1164200172
  • MERCEDES-BENZ: 116 420 02 05 / 1164200205
  • MERCEDES-BENZ: A 116 420 01 72 / A1164200172
  • MERCEDES-BENZ: A 116 420 02 05 / A1164200205

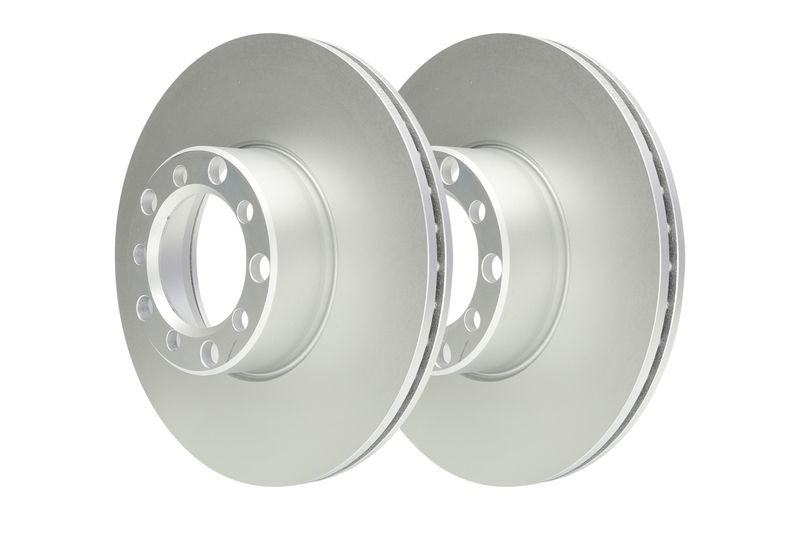

ATE Brake Disc 24.0122-0106.1

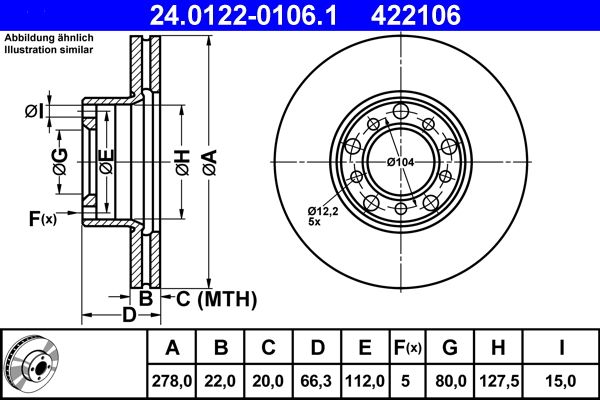

Specifications
  • Outer Diameter [mm]: 278,0
  • Brake Disc Thickness [mm]: 22,0
  • Minimum thickness [mm]: 20,0
  • Brake Disc Type: Vented
  • Surface: Coated
  • Number of Holes: 5
  • MAPP code available
  • Bolt Hole Circle Ø [mm]: 112,0
  • Height [mm]: 66,3
  • Centering Diameter [mm]: 80,0
  • Inner Diameter [mm]: 127,5
  • Bore Diameter [mm]: 15,0
  • Test Mark: E1 90R-02C0115/0418
