Catalogue

You must select a vehicle.

Brake Disc

ATE

Reference: 24.0328-0106.1

OTTO code: ATE-528106

Shipped: This product is not currently in stock

€ 94.78 incl. VAT

Add to cart
  • MERCEDES-BENZ: 210 421 15 12 / 2104211512
  • MERCEDES-BENZ: 210 421 22 12 / 2104212212
  • MERCEDES-BENZ: 210 421 12 12 / 2104211212
  • MERCEDES-BENZ: 203 421 05 12 / 2034210512
  • MERCEDES-BENZ: A 210 421 12 12 / A2104211212
  • MERCEDES-BENZ: A 210 421 15 12 / A2104211512
  • MERCEDES-BENZ: A 210 421 22 12 / A2104212212
  • MERCEDES-BENZ: A 203 421 05 12 / A2034210512

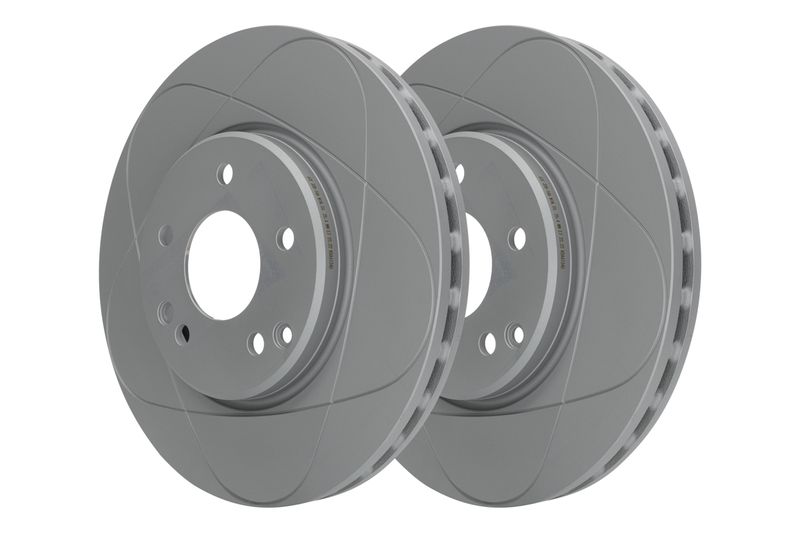

ATE Brake Disc 24.0328-0106.1

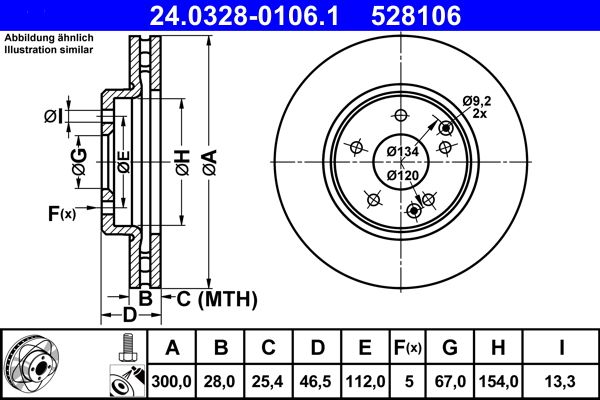

Specifications
  • Outer Diameter [mm]: 300,0
  • Brake Disc Thickness [mm]: 28,0
  • Minimum thickness [mm]: 25,4
  • Brake Disc Type: Vented
  • Machining: Alloyed/High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 112,0
  • Height [mm]: 46,5
  • Centering Diameter [mm]: 67,0
  • Inner Diameter [mm]: 154,0
  • Bore Diameter [mm]: 13,3
  • Supplementary Article/Info 2: with bolts/screws
  • Test Mark: E1 90R-02C0858/1304
  • MAPP code available
