Brake Disc

ATE

Reference: 24.0122-0134.1

OTTO code: ATE-422134

Shipped: within 24hrs

2
NB: any items ordered above this stock level will be placed on backorder.

€ 66.73 incl. VAT

  • MERCEDES-BENZ: 124 421 14 12 / 1244211412
  • MERCEDES-BENZ: 124 421 23 12 / 1244212312
  • MERCEDES-BENZ: A 124 421 14 12 / A1244211412
  • MERCEDES-BENZ: A 124 421 23 12 / A1244212312

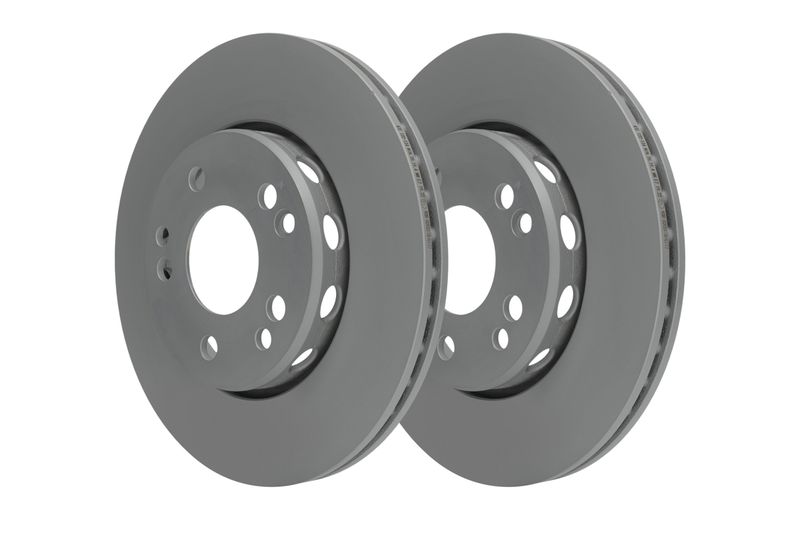

ATE Brake Disc 24.0122-0134.1
Specifications
  • Outer Diameter [mm]: 284,0
  • Brake Disc Thickness [mm]: 22,0
  • Minimum thickness [mm]: 19,4
  • Brake Disc Type: Vented
  • Machining: Alloyed/High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • MAPP code available
  • Bolt Hole Circle Ø [mm]: 112,0
  • Height [mm]: 43,5
  • Centering Diameter [mm]: 67,0
  • Inner Diameter [mm]: 152,0
  • Bore Diameter [mm]: 15,0
  • Test Mark: E1 90R-02C0118/0177
