Brake Disc

ATE

Reference: 24.0125-0110.1

OTTO code: ATE-425110

Shipped: within 24hrs

4
NB: any items ordered above this stock level will be placed on backorder.

€ 56.63 incl. VAT

  • CHRYSLER: 5098 063AA / 5098063AA
  • CHRYSLER: 0 5098 063AA / 05098063AA
  • MERCEDES-BENZ: 210 421 07 12 / 2104210712
  • MERCEDES-BENZ: 203 421 03 12 / 2034210312
  • MERCEDES-BENZ: 210 421 24 12 / 2104212412
  • MERCEDES-BENZ: A 210 421 07 12 / A2104210712
  • MERCEDES-BENZ: A 210 421 24 12 / A2104212412
  • MERCEDES-BENZ: A 203 421 03 12 / A2034210312

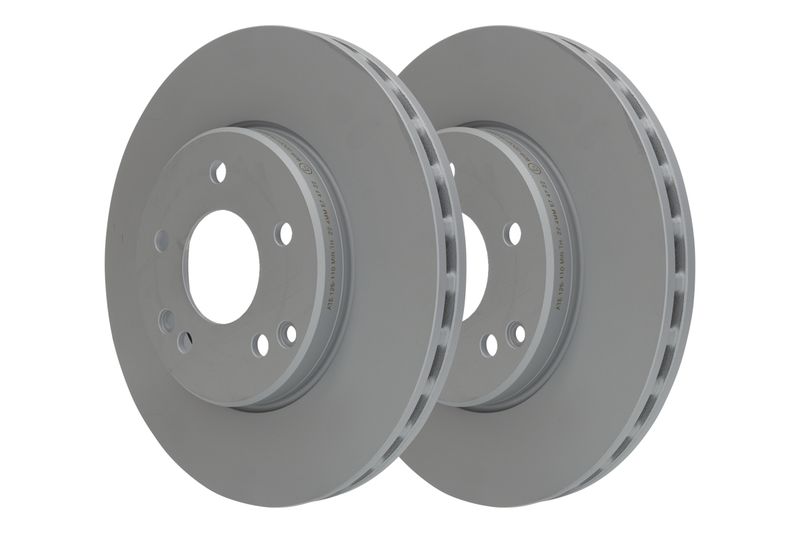

ATE Brake Disc 24.0125-0110.1

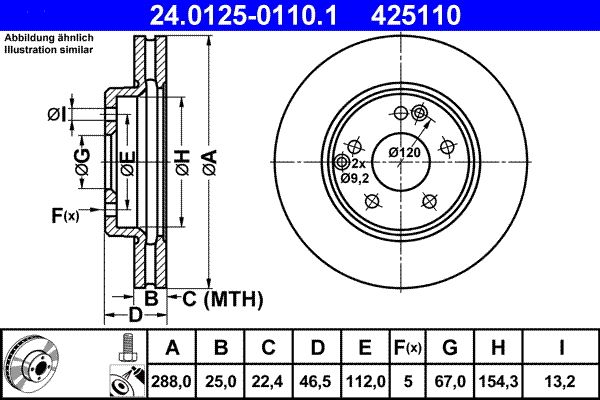

Specifications
  • Outer Diameter [mm]: 288,0
  • Brake Disc Thickness [mm]: 25,0
  • Minimum thickness [mm]: 22,4
  • Brake Disc Type: Vented
  • Machining: Alloyed/High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Supplementary Article/Info 2: with bolts/screws
  • MAPP code available
  • Bolt Hole Circle Ø [mm]: 112,0
  • Height [mm]: 46,5
  • Centering Diameter [mm]: 67,0
  • Inner Diameter [mm]: 154,3
  • Bore Diameter [mm]: 13,2
  • Test Mark: E1 90R-02C0115/0008
