Brake Disc

ATE

Reference: 24.0128-0103.1

OTTO code: ATE-428103

Shipped: This product is not currently in stock

€ 80.57 incl. VAT

Add to cart
  • MERCEDES-BENZ: 124 421 26 12 / 1244212612
  • MERCEDES-BENZ: 129 421 20 12 / 1294212012
  • MERCEDES-BENZ: 129 421 06 12 / 1294210612
  • MERCEDES-BENZ: 129 421 10 12 / 1294211012
  • MERCEDES-BENZ: A 129 421 06 12 / A1294210612
  • MERCEDES-BENZ: A 129 421 10 12 / A1294211012
  • MERCEDES-BENZ: A 129 421 20 12 / A1294212012
  • MERCEDES-BENZ: A 124 421 26 12 / A1244212612

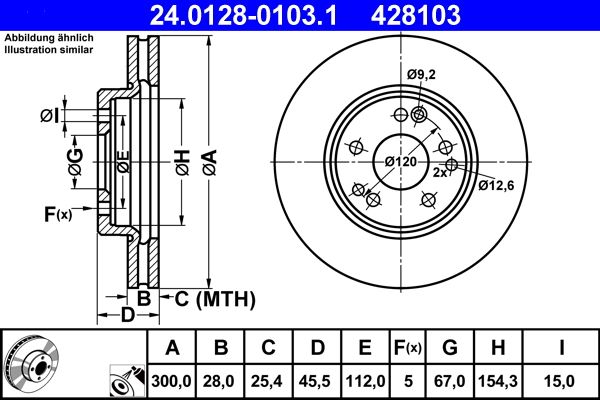

ATE Brake Disc 24.0128-0103.1
Specifications
  • Outer Diameter [mm]: 300,0
  • Brake Disc Thickness [mm]: 28,0
  • Minimum thickness [mm]: 25,4
  • Brake Disc Type: Vented
  • Processing: Alloyed/High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • MAPP code available
  • Bolt Hole Circle Ø [mm]: 112,0
  • Height [mm]: 45,5
  • Centering Diameter [mm]: 67,0
  • Inner Diameter [mm]: 154,3
  • Bore Diameter [mm]: 15,0
  • Test Mark: E1 90R-02C0115/0034
