Brake Disc

ATE

Reference: 24.0122-0208.1

OTTO code: ATE-422208

Shipped: within 24hrs

4
NB: any items ordered above this stock level will be placed on backorder.

€ 57.38 incl. VAT

  • MERCEDES-BENZ: 168 421 06 12 / 1684210612
  • MERCEDES-BENZ: A 168 421 06 12 / A1684210612

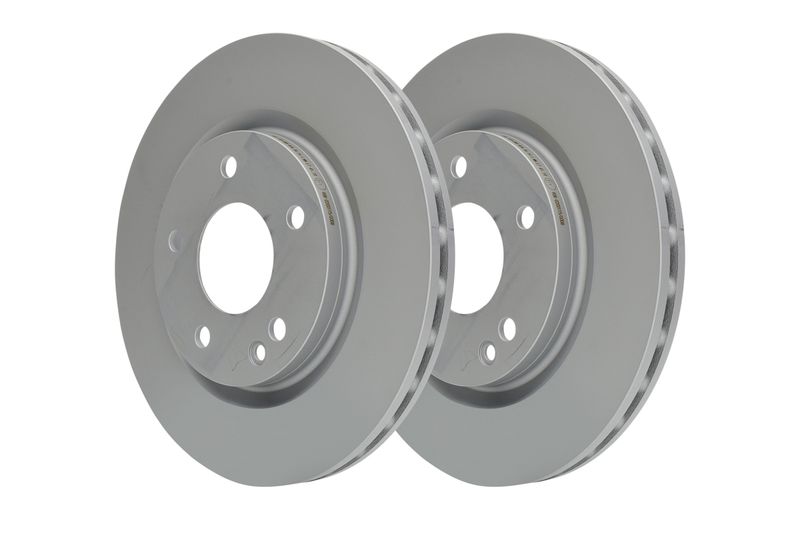

ATE Brake Disc 24.0122-0208.1

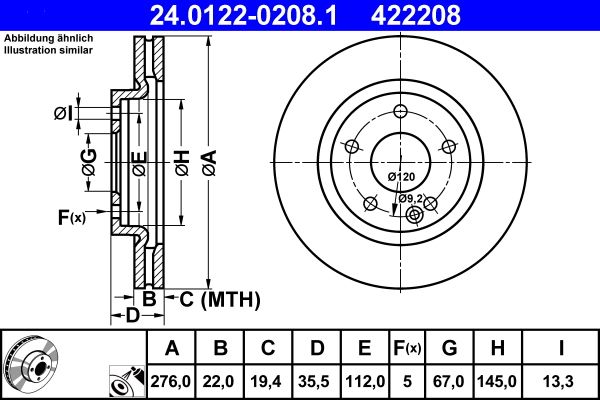

Specifications
  • Outer Diameter [mm]: 276,0
  • Brake Disc Thickness [mm]: 22,0
  • Minimum thickness [mm]: 19,4
  • Brake Disc Type: Vented
  • Number of Holes: 5
  • Machining: Alloyed/High-carbon
  • Surface: Coated
  • MAPP code available
  • Height [mm]: 35,5
  • Centering Diameter [mm]: 67,0
  • Inner Diameter [mm]: 145,0
  • Bolt Hole Circle Ø [mm]: 112,0
  • Bore Diameter [mm]: 13,3
  • Test Mark: E1 90R-02C0115/0308
