Brake Disc

ATE

Reference: 24.0136-0106.2

OTTO code: ATE-436106

Shipped: within 24hrs

2
NB: any items ordered above this stock level will be placed on backorder.

€ 262.84 incl. VAT

  • BMW: 34 11 6 779 467 / 34116779467
  • BMW: 34 11 6 766 871 / 34116766871

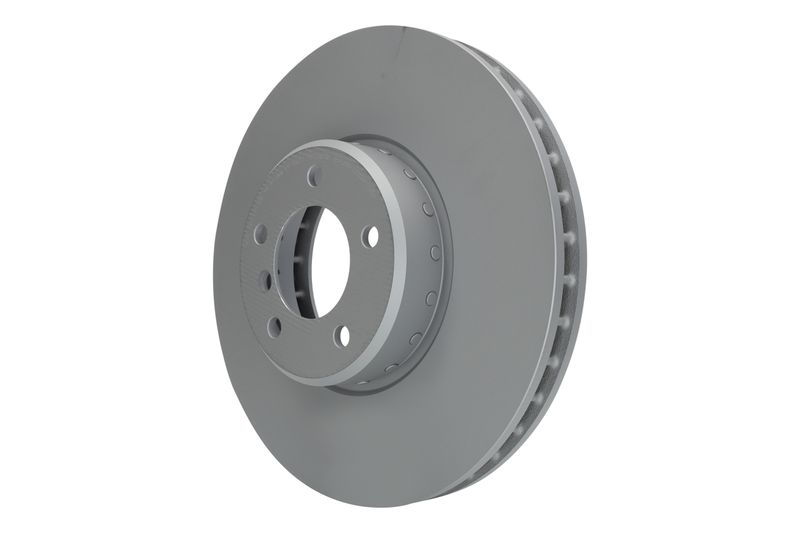

ATE Brake Disc 24.0136-0106.2

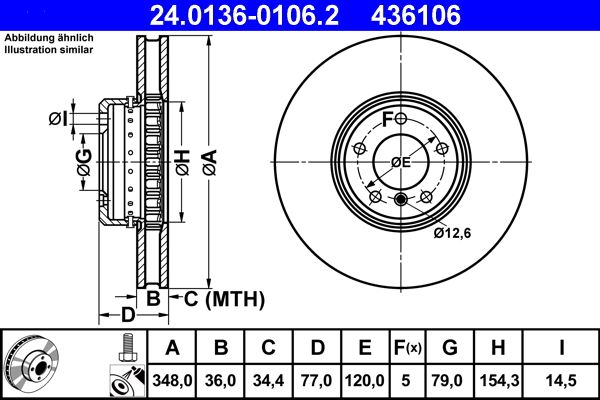

Specifications
  • Outer Diameter [mm]: 348,0
  • Brake Disc Thickness [mm]: 36,0
  • Minimum thickness [mm]: 34,4
  • Brake Disc Type: two-part brake disc
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Supplementary Article/Info 2: with bolts/screws
  • Bolt Hole Circle Ø [mm]: 120,0
  • Height [mm]: 77,0
  • Centering Diameter [mm]: 79,0
  • Inner Diameter [mm]: 154,3
  • Bore Diameter [mm]: 14,5
  • MAPP code available
  • Test Mark: E1 90R-02C0391/0990
