Brake Disc

ATE

Reference: 24.0122-0160.1

OTTO code: ATE-422160

Shipped: within 24hrs

2
NB: any items ordered above this stock level will be placed on backorder.

€ 72.37 incl. VAT

  • BMW: 34 11 1 164 539 / 34111164539
  • BMW: 34 11 6 766 224 / 34116766224
  • BMW: 34 11 6 757 526 / 34116757526
  • BMW: 34 11 6 855 152 / 34116855152
  • BMW: 34 11 6 864 058 / 34116864058
  • BMW: 34 11 6 794 302 / 34116794302

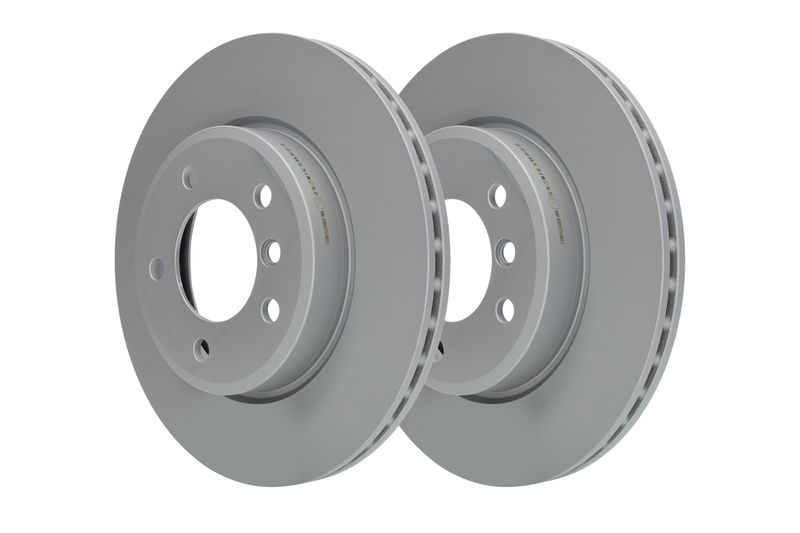

ATE Brake Disc 24.0122-0160.1

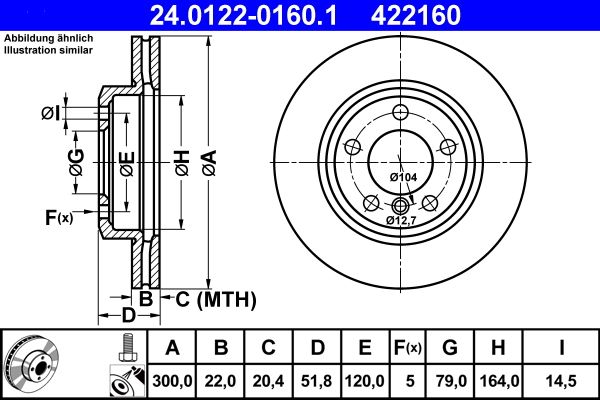

Specifications
  • Outer Diameter [mm]: 300,0
  • Brake Disc Thickness [mm]: 22,0
  • Minimum thickness [mm]: 20,4
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 120,0
  • Height [mm]: 51,8
  • Centering Diameter [mm]: 79,0
  • Inner Diameter [mm]: 164,0
  • Bore Diameter [mm]: 14,5
  • Supplementary Article/Info 2: with bolts/screws
  • MAPP code available
  • Test Mark: E1 90R-02C0115/0017
