Catalogue

You must select a vehicle.

Brake Disc

ATE

Reference: 24.0128-0204.2

OTTO code: ATE-428204

Shipped: This product is not currently in stock

€ 366.56 incl. VAT

Add to cart
  • BMW: 34 11 2 227 737 / 34112227737

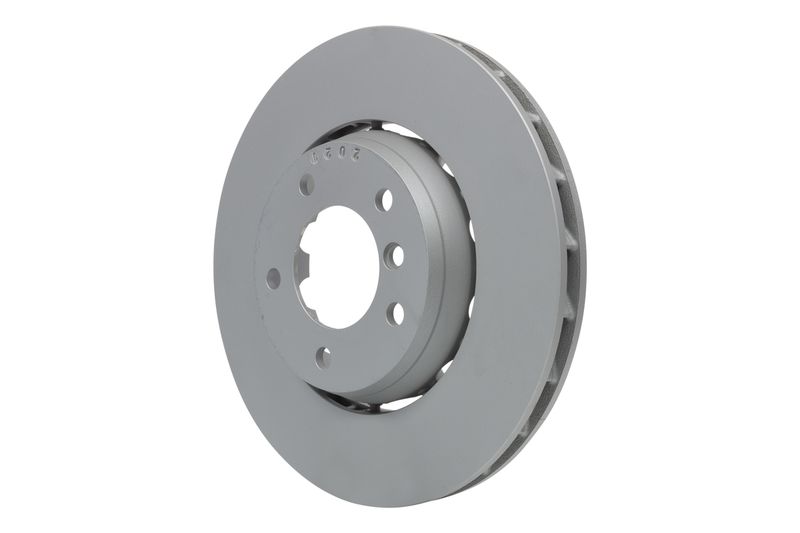

ATE Brake Disc 24.0128-0204.2

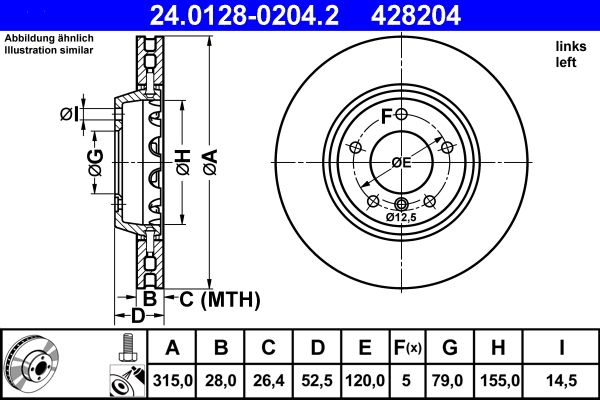

Specifications
  • Outer Diameter [mm]: 315,0
  • Brake Disc Thickness [mm]: 28,0
  • Minimum thickness [mm]: 26,4
  • Brake Disc Type: two-piece brake disc
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Supplementary Article/Supplementary Info 2: with bolts/screws
  • MAPP code available
  • paired article number: 24.0128-0205.2
  • Bolt Hole Circle Ø [mm]: 120,0
  • Height [mm]: 52,5
  • Centering Diameter [mm]: 79,0
  • Inner Diameter [mm]: 155,0
  • Bore Diameter [mm]: 14,5
