Brake Disc

ATE

Reference: 24.0122-0248.1

OTTO code: ATE-422248

Shipped: within 24hrs

2
NB: any items ordered above this stock level will be placed on backorder.

€ 68.96 incl. VAT

  • MINI: 34 11 6 858 651
  • MINI: 34 11 6 774 985

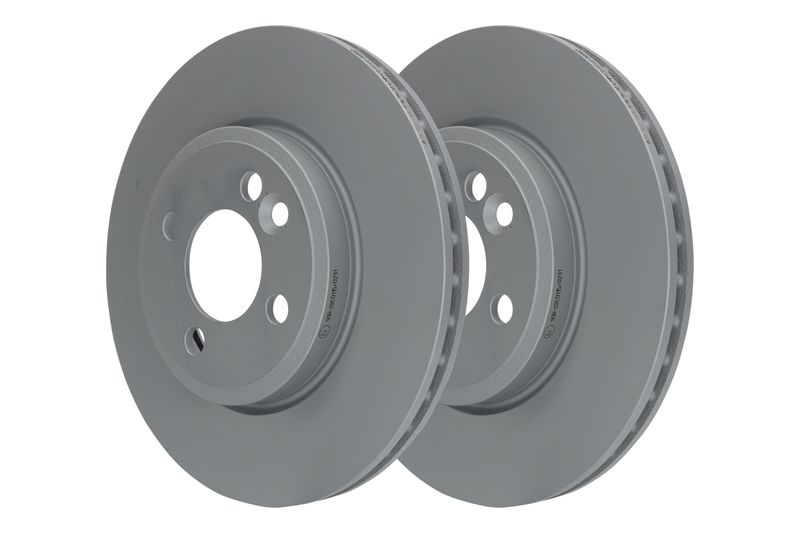

ATE Brake Disc 24.0122-0248.1

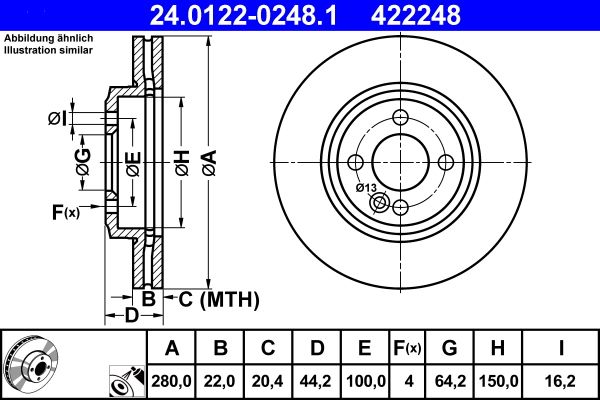

Specifications
  • Outer diameter [mm]: 280,0
  • Brake Disc Thickness [mm]: 22,0
  • Minimum thickness [mm]: 20,4
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 4
  • MAPP code available
  • Bolt Hole Circle Ø [mm]: 100,0
  • Height [mm]: 44,2
  • Centering Diameter [mm]: 64,2
  • Inner diameter [mm]: 150,0
  • Bore Ø [mm]: 16,2
  • Inspection Tag: E1 90R-02C0115/0231
