Brake Drum

ATE

Reference: 24.0222-8009.1

OTTO code: ATE-480026

Shipped: BACK ORDER

€ 40.29 incl. VAT

  • BMW: 34 21 1 158 556
  • BMW: 34 21 1 156 297

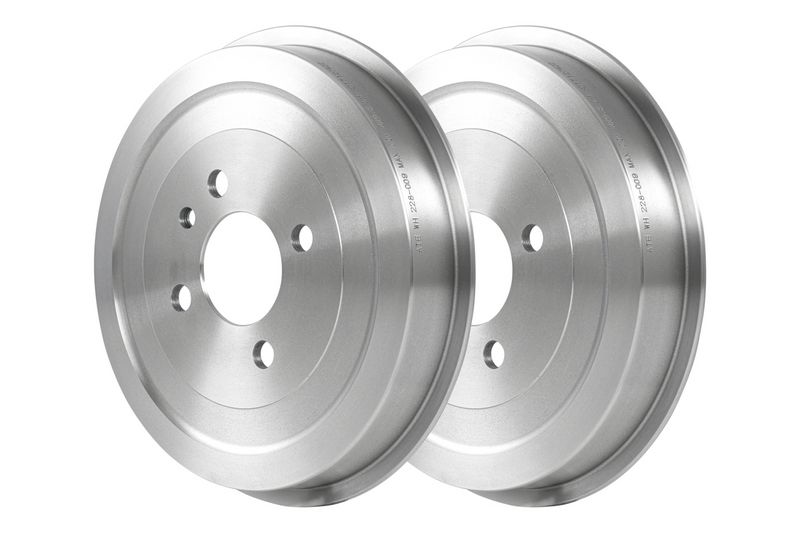

ATE Brake Drum 24.0222-8009.1

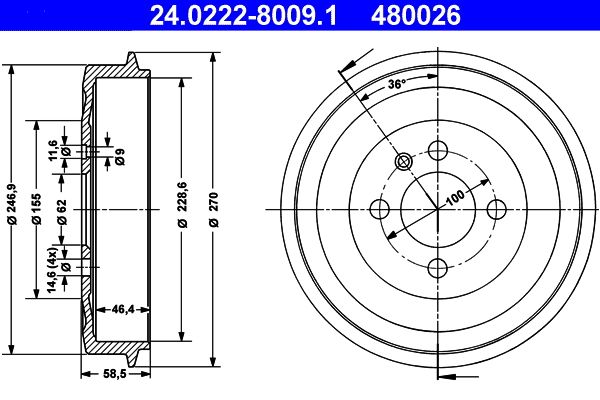

Specifications
  • Inner Br. Drum Diam. [mm]: 229
  • Max.skimmed drum measure [mm]: 229,5
  • Inner Brake Drum Height [mm]: 46,4
  • Number of Holes: 4
  • Bolt Hole Circle Ø [mm]: 100,0
  • Bore Ø [mm]: 14,5
  • Total Br. Drum Height [mm]: 58,5
  • Br. Drum outer diameter [mm]: 270,0
  • Support plate diameter [mm]: 62,0
  • MAPP code available
