Catalogue

You must select a vehicle.

Brake Disc

ATE

Reference: 24.0132-0117.1

OTTO code: ATE-432117

Shipped: This product is not currently in stock

€ 147.02 incl. VAT

Add to cart
  • PORSCHE: 955 351 401 40 / 95535140140
  • PORSCHE: 955 351 401 41 / 95535140141
  • VAG: 7L6 615 301 D / 7L6615301D
  • VAG: 7L6 615 301 J / 7L6615301J
  • VAG: 7L6 615 301 N / 7L6615301N
  • VAG: 7L6 615 301 P / 7L6615301P

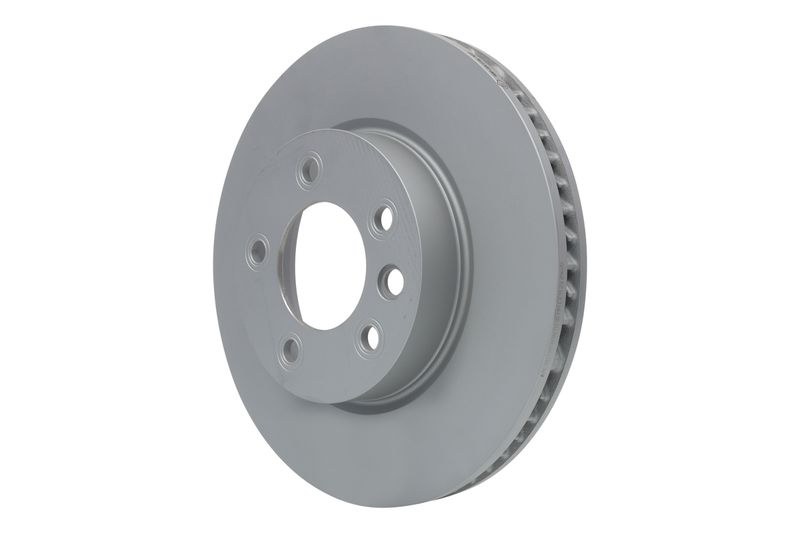

ATE Brake Disc 24.0132-0117.1

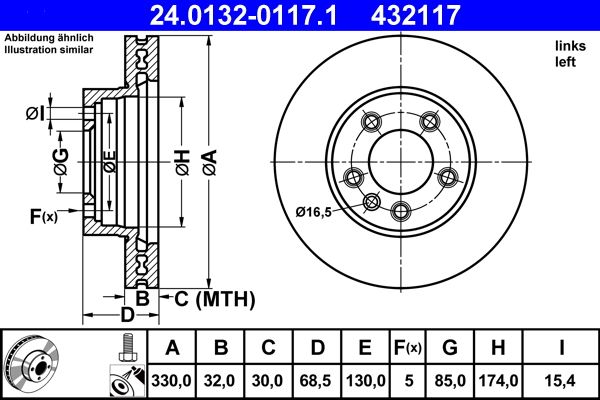

Specifications
  • Outer Diameter [mm]: 330,0
  • Brake Disc Thickness [mm]: 32,0
  • Minimum thickness [mm]: 30,0
  • Brake Disc Type: Vented
  • Machining: Alloyed/High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • paired article number: 24.0132-0118.1
  • Bolt Hole Circle Ø [mm]: 130,0
  • Height [mm]: 68,5
  • Centering Diameter [mm]: 85,0
  • Inner Diameter [mm]: 174,0
  • Bore Diameter [mm]: 15,4
  • Supplementary Article/Info 2: with bolts/screws
  • MAPP code available
  • Test Mark: E1 90R-02C0115/1017
