Brake Disc

ATE

Reference: 24.0125-0123.1

OTTO code: ATE-425123

Shipped: This product is not currently in stock

€ 135.53 incl. VAT

Add to cart
  • SEAT: 8N0 615 301 A / 8N0615301A
  • SEAT: 6R0 615 301 B / 6R0615301B
  • SEAT: 6R0 615 301 E / 6R0615301E
  • SKODA: 8N0 615 301 A / 8N0615301A
  • SKODA: 6R0 615 301 B / 6R0615301B
  • SKODA: 6R0 615 301 E / 6R0615301E
  • VAG: 8N0 615 301 A / 8N0615301A
  • VAG: 8L0 615 301 / 8L0615301
  • VAG: 6R0 615 301 B / 6R0615301B
  • VAG: 6R0 615 301 E / 6R0615301E

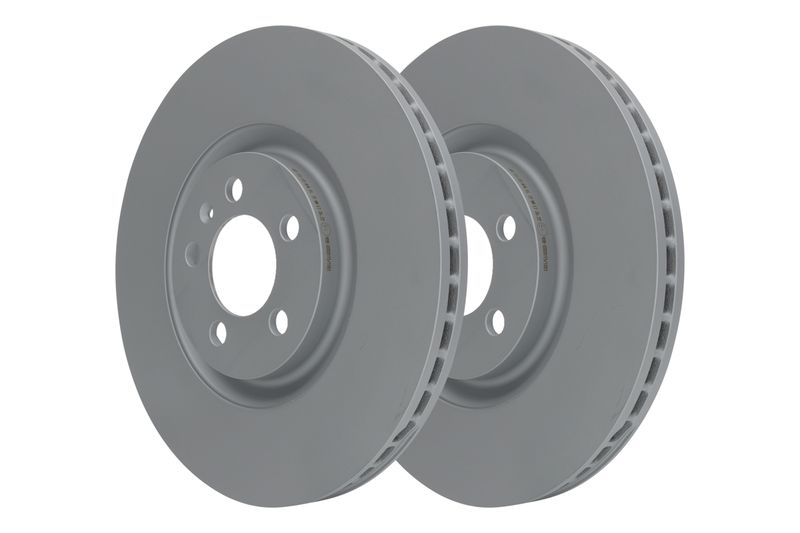

ATE Brake Disc 24.0125-0123.1
Specifications
  • Outer Diameter [mm]: 310,0
  • Brake Disc Thickness [mm]: 25,0
  • Minimum thickness [mm]: 22,0
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Supplementary Article/Info 2: with bolts/screws
  • MAPP code available
  • No. of holes 2: 9
  • Bolt Hole Circle Ø [mm]: 100,0
  • Height [mm]: 34,4
  • Centering Diameter [mm]: 65,0
  • Inner Diameter [mm]: 133,8
  • Bore Diameter [mm]: 15,6
  • Test Mark: E1 90R-02C0115/1001
