- VAG: 8D0 615 301 K / 8D0615301K
- VAG: 8D0 615 301 M / 8D0615301M
- VAG: 8E0 615 301 AD / 8E0615301AD

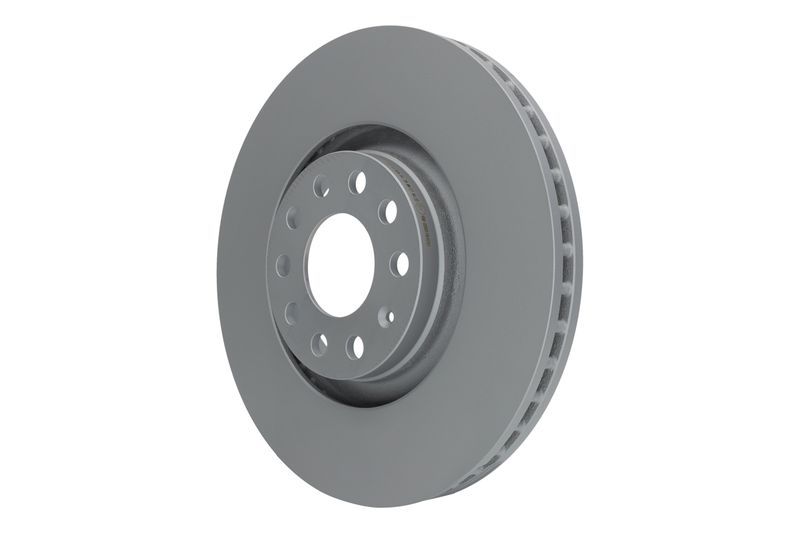

ATE Brake Disc 24.0130-0113.1

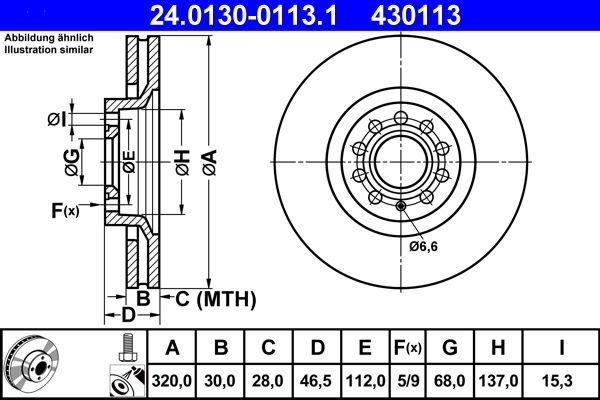

Specifications
- Outer Diameter [mm]: 320,0
- Brake Disc Thickness [mm]: 30,0
- Minimum thickness [mm]: 28,0
- Brake Disc Type: Vented
- Machining: High-carbon
- Surface: Coated
- Number of Holes: 5
- No. of holes 2: 9
- Height [mm]: 46,5
- Centering Diameter [mm]: 68,0
- Inner Diameter [mm]: 137,0
- Bolt Hole Circle Ø [mm]: 112,0
- Bore Diameter [mm]: 15,3
- Supplementary Article/Info 2: with bolts/screws
- MAPP code available
- Test Mark: E1 90R-02C0118/0281
