Brake Disc

ATE

Reference: 24.0125-0137.1

OTTO code: ATE-425137

Shipped: within 24hrs

4
NB: any items ordered above this stock level will be placed on backorder.

€ 91.72 incl. VAT

  • SEAT: 8E0 615 301 R / 8E0615301R
  • SKODA: 8D0 615 301 J / 8D0615301J
  • SKODA: 4B0 615 301 A / 4B0615301A
  • SKODA: 8E0 615 301 R / 8E0615301R
  • VAG: 3B0 615 301 B / 3B0615301B
  • VAG: 8D0 615 301 J / 8D0615301J
  • VAG: 4B0 615 301 A / 4B0615301A
  • VAG: 8E0 615 301 R / 8E0615301R

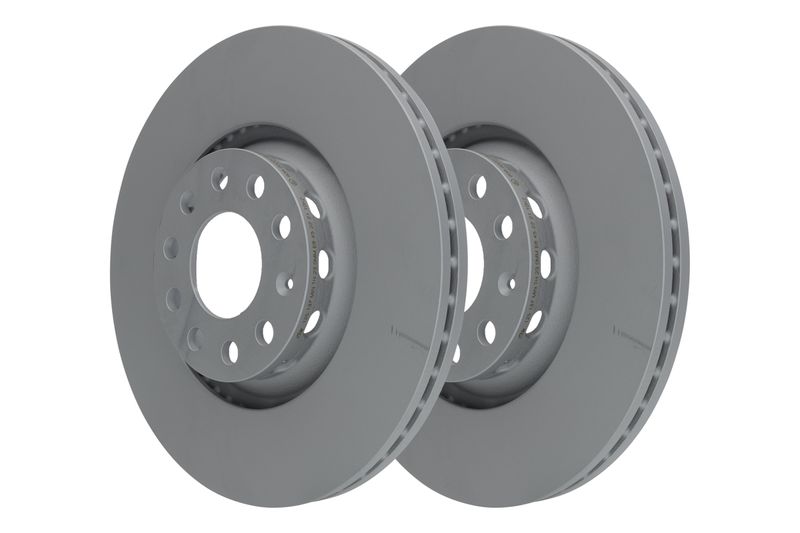

ATE Brake Disc 24.0125-0137.1

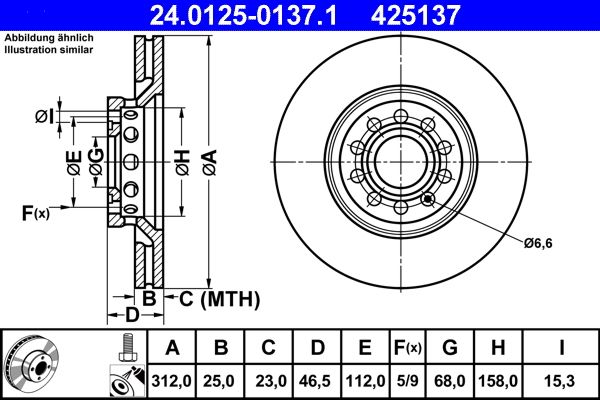

Specifications
  • Outer Diameter [mm]: 312,0
  • Brake Disc Thickness [mm]: 25,0
  • Minimum thickness [mm]: 23,0
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • No. of holes 2: 9
  • Height [mm]: 46,5
  • Centering Diameter [mm]: 68,0
  • Inner Diameter [mm]: 158,0
  • Bolt Hole Circle Ø [mm]: 112,0
  • Bore Diameter [mm]: 15,3
  • Supplementary Article/Info 2: with bolts/screws
  • Test Mark: E1 90R-02C0118/0943
  • MAPP code available
