Brake Disc

ATE

Reference: 24.0130-0174.1

OTTO code: ATE-430174

Shipped: This product is not currently in stock

€ 137.07 incl. VAT

Add to cart
  • VAG: 4B3 615 301 / 4B3615301

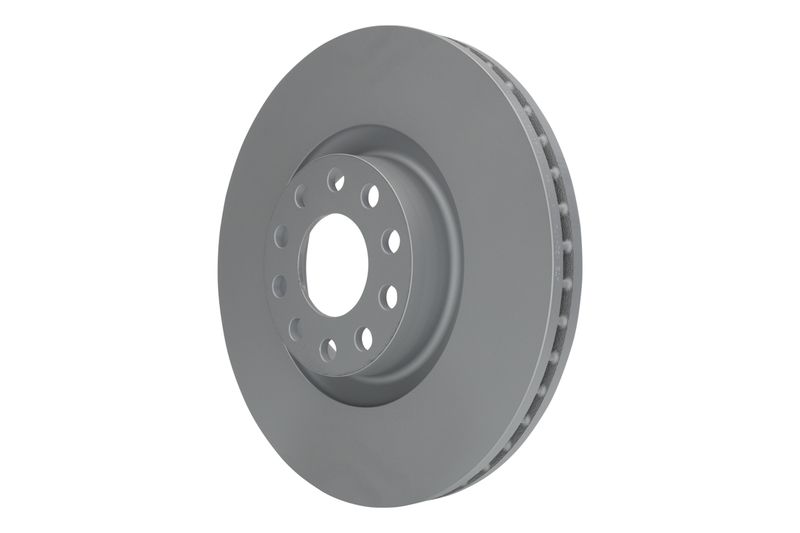

ATE Brake Disc 24.0130-0174.1

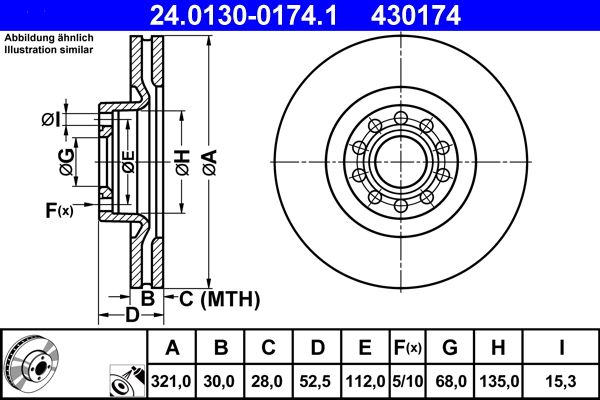

Specifications
  • Outer Diameter [mm]: 321,0
  • Brake Disc Thickness [mm]: 30,0
  • Minimum thickness [mm]: 28,0
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • No. of holes 2: 10
  • Bolt Hole Circle Ø [mm]: 112,0
  • Height [mm]: 52,5
  • Centering Diameter [mm]: 68,0
  • Inner Diameter [mm]: 135,0
  • Bore Diameter [mm]: 15,3
  • MAPP code available
  • Test Mark: E1 90R-02C0115/0251
