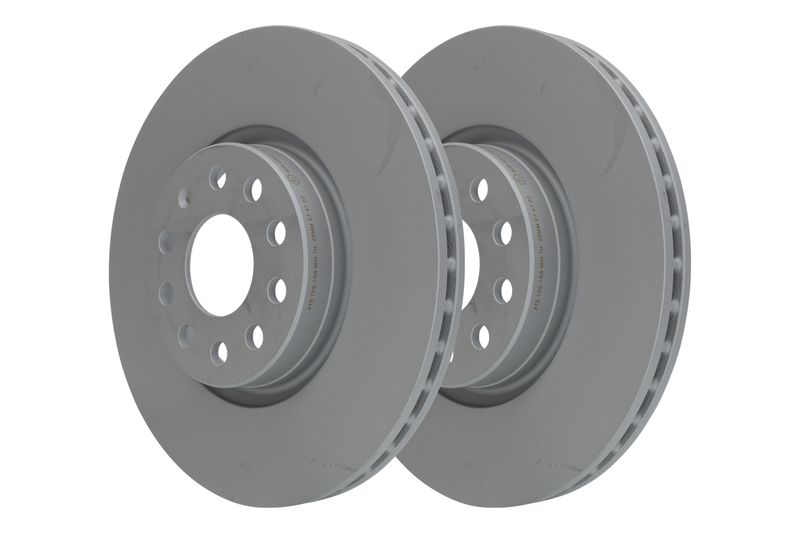

Brake Disc

ATE

Reference: 24.0125-0158.1

OTTO code: ATE-425158

Shipped: within 24hrs

€ 61.65 incl. VAT

  • SEAT: 1K0 615 301 AA
  • SEAT: JZW 615 301 H
  • SEAT: 5Q0 615 301 F
  • SKODA: 1K0 615 301 AA
  • SKODA: JZW 615 301 H
  • SKODA: 5Q0 615 301 F
  • VAG: 1K0 615 301 AA
  • VAG: 5C0 615 301 B
  • VAG: JZW 615 301 H
  • VAG: 5Q0 615 301 F
ATE Brake Disc 24.0125-0158.1

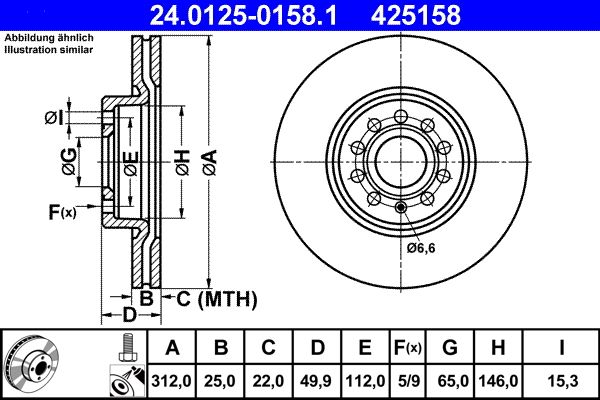

Specifications
  • Outer diameter [mm]: 312,0
  • Brake Disc Thickness [mm]: 25,0
  • Minimum thickness [mm]: 22,0
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • No. of holes 2: 9
  • Bolt Hole Circle Ø [mm]: 112,0
  • Height [mm]: 49,9
  • Centering Diameter [mm]: 65,0
  • Inner diameter [mm]: 146,0
  • Bore Ø [mm]: 15,3
  • Supplementary Article/Info 2: with screws
  • MAPP code available
  • Inspection Tag: E1 90R-02C0115/1001
