Brake Disc

ATE

Reference: 24.0125-0145.1

OTTO code: ATE-425145

Shipped: within 24hrs

€ 71.52 incl. VAT

  • SEAT: 1K0 615 301 T / 1K0615301T
  • SEAT: JZW 615 301 J / JZW615301J
  • SEAT: 5Q0 615 301 H / 5Q0615301H
  • SKODA: 1K0 615 301 T / 1K0615301T
  • SKODA: JZW 615 301 J / JZW615301J
  • SKODA: 5Q0 615 301 H / 5Q0615301H
  • VAG: 1K0 615 301 T / 1K0615301T
  • VAG: 1K0 615 301 K / 1K0615301K
  • VAG: 5C0 615 301 A / 5C0615301A
  • VAG: JZW 615 301 J / JZW615301J
  • VAG: 5Q0 615 301 H / 5Q0615301H

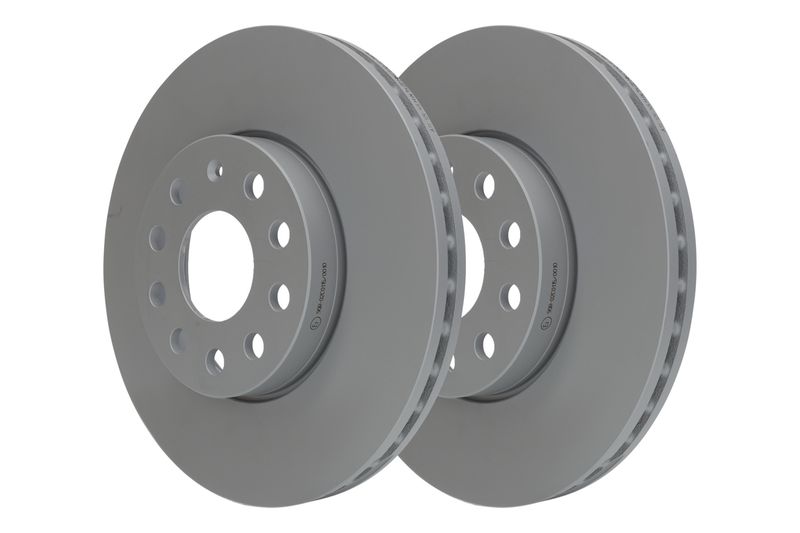

ATE Brake Disc 24.0125-0145.1
Specifications
  • Outer Diameter [mm]: 288,0
  • Brake Disc Thickness [mm]: 25,0
  • Minimum thickness [mm]: 22,0
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • No. of holes 2: 9
  • Height [mm]: 49,9
  • Centering Diameter [mm]: 65,0
  • Inner Diameter [mm]: 144,0
  • Bolt Hole Circle Ø [mm]: 112,0
  • Bore Diameter [mm]: 15,3
  • Supplementary Article/Info 2: with bolts/screws
  • MAPP code available
  • Test Mark: E1 90R-02C0115/0010
