Catalogue

You must select a vehicle.

Brake Disc

ATE

Reference: 24.0125-0113.1

OTTO code: ATE-425113

Shipped: within 24hrs

2
NB: any items ordered above this stock level will be placed on backorder.

€ 70.93 incl. VAT

  • SEAT: 1J0 615 301 C / 1J0615301C
  • SEAT: 1J0 615 301 R / 1J0615301R
  • SEAT: 1J0 615 301 S / 1J0615301S
  • SKODA: 1J0 615 301 C / 1J0615301C
  • SKODA: 1J0 615 301 R / 1J0615301R
  • SKODA: 6R0 615 301 A / 6R0615301A
  • SKODA: 6R0 615 301 D / 6R0615301D
  • VAG: 1J0 615 301 C / 1J0615301C
  • VAG: 1J0 615 301 K / 1J0615301K
  • VAG: 1J0 615 301 S / 1J0615301S
  • VAG: 1J0 615 301 R / 1J0615301R
  • VAG: 6R0 615 301 A / 6R0615301A
  • VAG: 6R0 615 301 D / 6R0615301D

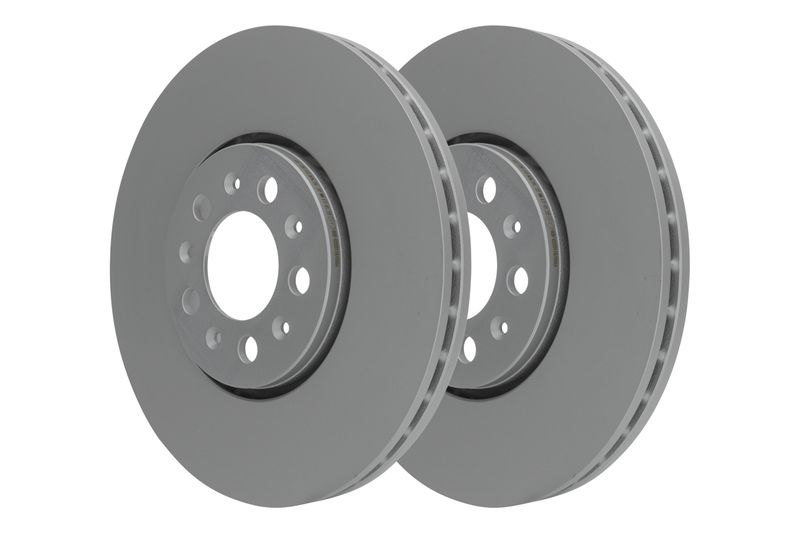

ATE Brake Disc 24.0125-0113.1

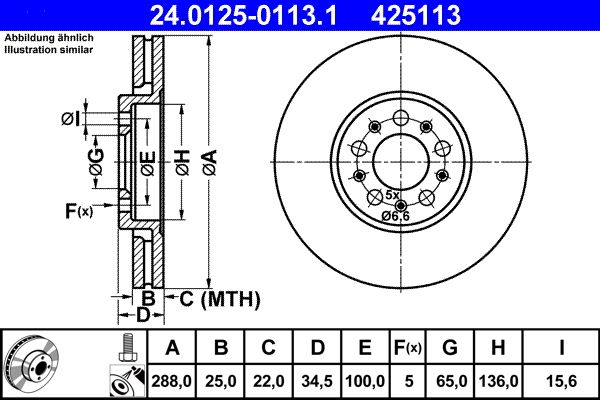

Specifications
  • Outer Diameter [mm]: 288,0
  • Brake Disc Thickness [mm]: 25,0
  • Minimum thickness [mm]: 22,0
  • Brake Disc Type: Vented
  • Machining: High-carbon
  • Surface: Coated
  • Number of Holes: 5
  • Bolt Hole Circle Ø [mm]: 100,0
  • Height [mm]: 34,5
  • Centering Diameter [mm]: 65,0
  • Inner Diameter [mm]: 136,0
  • Bore Diameter [mm]: 15,6
  • Supplementary Article/Info 2: with bolts/screws
  • MAPP code available
  • Test Mark: E1 90R-02C0118/0066
