- SEAT: 1J0 615 301 E / 1J0615301E
- SEAT: 1J0 615 301 M / 1J0615301M
- SKODA: 1J0 615 301 E / 1J0615301E
- SKODA: 1J0 615 301 M / 1J0615301M
- VAG: 1J0 615 301 E / 1J0615301E
- VAG: 1J0 615 301 M / 1J0615301M
- VAG: 1J0 615 301 P / 1J0615301P

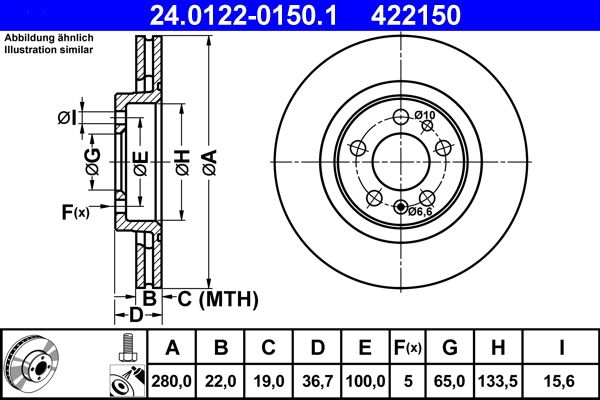

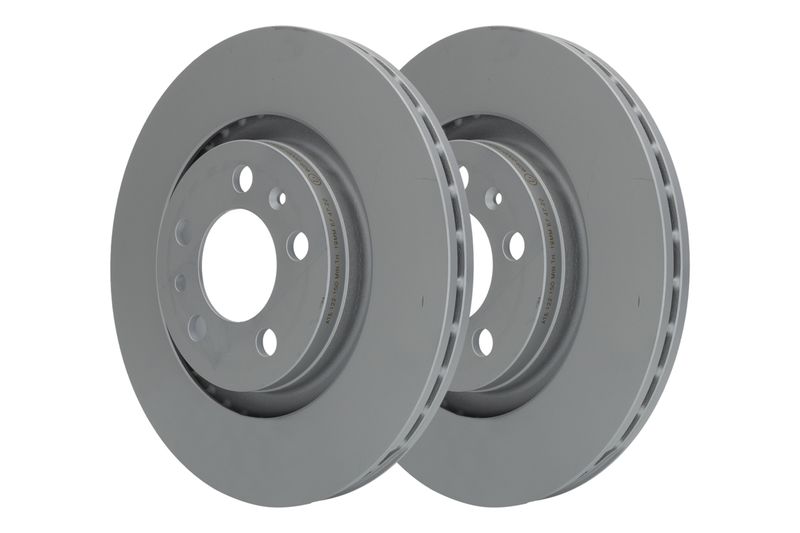

ATE Brake Disc 24.0122-0150.1
Specifications
- Outer Diameter [mm]: 280,0
- Brake Disc Thickness [mm]: 22,0
- Minimum thickness [mm]: 19,0
- Brake Disc Type: Vented
- Machining: High-carbon
- Surface: Coated
- Number of Holes: 5
- Supplementary Article/Info 2: with bolts/screws
- MAPP code available
- Bolt Hole Circle Ø [mm]: 100,0
- Height [mm]: 36,7
- Centering Diameter [mm]: 65,0
- Inner Diameter [mm]: 133,5
- Bore Diameter [mm]: 15,6
- Test Mark: E1 90R-02C0118/0479
