Brake Drum

ATE

Reference: 24.0223-0020.1

OTTO code: ATE-480177

Shipped: within 24hrs

2
NB: any items ordered above this stock level will be placed on backorder.

€ 64.50 incl. VAT

  • SEAT: 6K9 609 617
  • VAG: 6K9 609 617

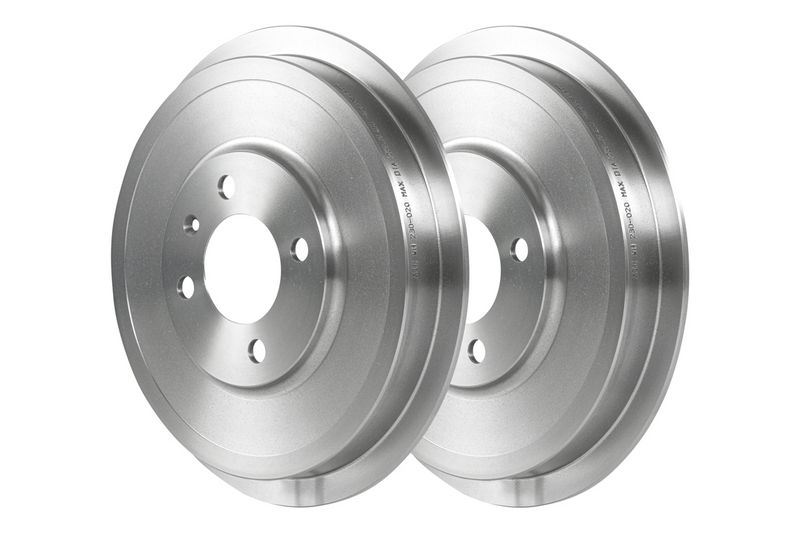

ATE Brake Drum 24.0223-0020.1

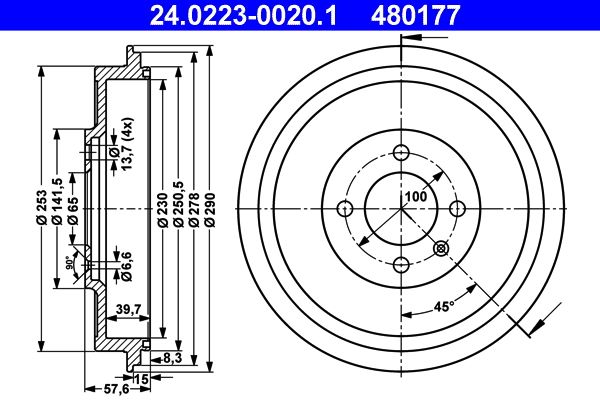

Specifications
  • Brake diameter, inside [mm]: 230,0
  • Max.skimmed drum measure [mm]: 231,5
  • Inner Brake Drum Height [mm]: 39,7
  • Number of Holes: 4
  • Bolt Hole Circle Ø [mm]: 100,0
  • Support plate diameter [mm]: 65,0
  • Bore Ø [mm]: 13,7
  • Total Br. Drum Height [mm]: 57,6
  • Brake diameter, outer [mm]: 290,0
  • MAPP code available
