- OPEL: 5 69 042 / 569042
- OPEL: 90295087
- OPEL: 5 69 001 / 569001
- OPEL: 90487402
- VAUXHALL: 5 69 042 / 569042
- VAUXHALL: 90295087
- VAUXHALL: 90487402
- VAUXHALL: 5 69 001 / 569001
- CHEVROLET: 96179110
- CHEVROLET: 90487402
- DAEWOO: 96179110

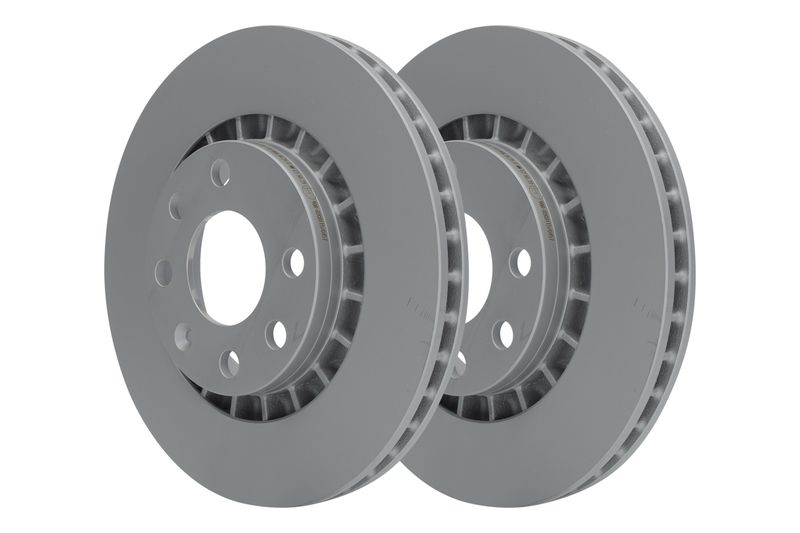

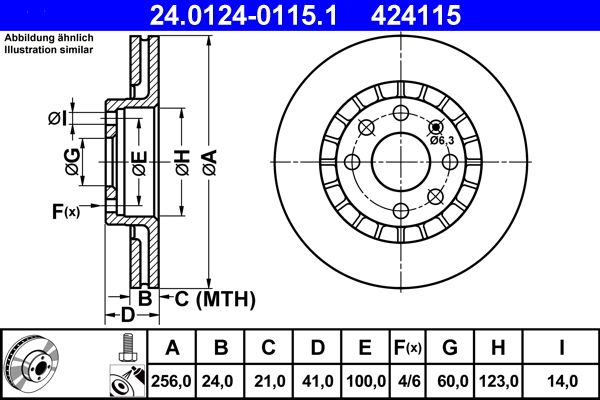

ATE Brake Disc 24.0124-0115.1
Specifications
- Outer Diameter [mm]: 256,0
- Brake Disc Thickness [mm]: 24,0
- Minimum thickness [mm]: 21,0
- Brake Disc Type: Vented
- Number of Holes: 4
- Machining: Alloyed/High-carbon
- Surface: Coated
- Supplementary Article/Info 2: with bolts/screws
- MAPP code available
- No. of holes 2: 6
- Bolt Hole Circle Ø [mm]: 100,0
- Height [mm]: 41,0
- Centering Diameter [mm]: 60,0
- Inner Diameter [mm]: 123,0
- Bore Diameter [mm]: 14,0
- Test Mark: E1 90R-02C0115/0457
