Catalogue

You must select a vehicle.

Starter

BOSCH

Reference: 0 986 017 120

OTTO code: BOS-0 986 017 120


Surcharge details: This product is subject to a €85.00 surcharge which will be charged as part of the shipping cost when added to the cart. A refund will be issued in accordance to our Terms & Conditions.

More details

Shipped: This product is not currently in stock

€ 244.35 incl. VAT

Add to cart
  • FIAT: 71739718
  • OPEL: 09115192
  • OPEL: 09130838
  • OPEL: 09163856
  • OPEL: 09512051
  • OPEL: 1202128
  • OPEL: 1202137
  • OPEL: 1202142
  • OPEL: 1202172
  • OPEL: 1202173
  • OPEL: 6202016
  • OPEL: 6202075
  • OPEL: 90341777
  • OPEL: 90421877
  • OPEL: 90508036
  • OPEL: 90543871
  • OPEL: 90543872
  • OPEL: 9115192
  • OPEL: 9115197
  • OPEL: 9130838
  • OPEL: 9190838
  • OPEL: 93171936
  • OPEL: 93184533
  • OPEL: 93604828
  • VAUXHALL: R1040008
  • VAUXHALL: 90543871
  • VAUXHALL: 9115192
  • VAUXHALL: 9130838
  • VAUXHALL: 93171936
  • VAUXHALL: 93184533
  • CHEVROLET: 25 182 244 / 25182244
  • CHEVROLET: 25 186 107 / 25186107
  • CHEVROLET: 25 187 957 / 25187957
  • CHEVROLET: 96 469 963 / 96469963
  • CHEVROLET: 96 550 792 / 96550792
  • CHEVROLET: 96 843 578 / 96843578
  • CHEVROLET: 96 952 006 / 96952006
  • DAEWOO: 96208782
  • DAEWOO: 96550792
BOSCH Starter 0 986 017 120

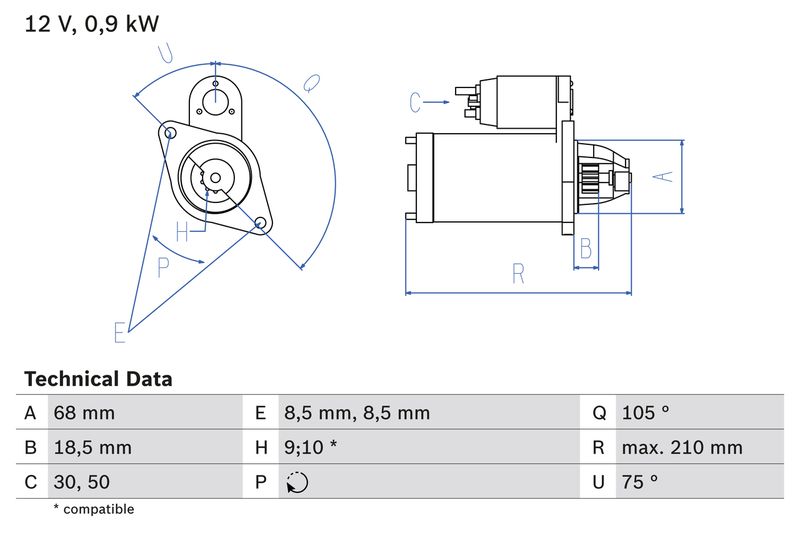

Specifications
  • Exchange Part
  • Voltage [V]: 12
  • Rated Power [kW]: 0,9
  • Number of mounting bores: 2
  • Number of threaded holes: 0
  • Number of Teeth: 10
  • Number of Teeth: 9
  • Clamp: 50
  • Clamp: 30
  • Flange Diameter [mm]: 68
  • Rotation Direction: Clockwise rotation
  • Pinion Rest Position [mm]: 18,5
  • Starter Type: Self-supporting
  • Bore Diameter [mm]: 8,5
  • Bore Diameter 2 [mm]: 8,5
  • Length [mm]: 210
  • Position/Degree: links
  • Mounting Angle [degrees]: 75
  • Jaw opening angle measurement [Degree]: 105
  • Mounting bore angle measurement [degree]: 75
