Starter

BOSCH

Reference: 0 986 014 660

OTTO code: BOS-0 986 014 660


Surcharge details: This product is subject to a €50.00 surcharge which will be charged as part of the shipping cost when added to the cart. A refund will be issued in accordance to our Terms & Conditions.

More details

Shipped: within 24hrs

3
NB: any items ordered above this stock level will be placed on backorder.

€ 500.09 incl. VAT

  • MERCEDES-BENZ: A 003 151 29 01 / A0031512901
  • MERCEDES-BENZ: A 003 151 29 01 80 / A003151290180
  • MERCEDES-BENZ: A 003 151 98 01 / A0031519801
  • MERCEDES-BENZ: A 003 151 98 01 80 / A003151980180
  • MERCEDES-BENZ: A 004 151 35 01 / A0041513501
  • MERCEDES-BENZ: A 004 151 35 01 80 / A004151350180
  • MERCEDES-BENZ: A 004 151 44 01 / A0041514401
  • MERCEDES-BENZ: A 004 151 44 01 80 / A004151440180
  • MERCEDES-BENZ: A 004 151 56 01 / A0041515601
  • MERCEDES-BENZ: A 004 151 56 01 80 / A004151560180
  • MERCEDES-BENZ: A 004 151 79 01 / A0041517901
  • MERCEDES-BENZ: A 004 151 79 01 80 / A004151790180
  • MERCEDES-BENZ: A 006 151 32 01 / A0061513201
  • MERCEDES-BENZ: 003 151 29 01 / 0031512901
  • MERCEDES-BENZ: 003 151 29 01 80 / 003151290180
  • MERCEDES-BENZ: 003 151 98 01 / 0031519801
  • MERCEDES-BENZ: 003 151 98 01 80 / 003151980180
  • MERCEDES-BENZ: 004 151 35 01 / 0041513501
  • MERCEDES-BENZ: 004 151 35 01 80 / 004151350180
  • MERCEDES-BENZ: 004 151 44 01 / 0041514401
  • MERCEDES-BENZ: 004 151 44 01 80 / 004151440180
  • MERCEDES-BENZ: 004 151 56 01 / 0041515601
  • MERCEDES-BENZ: 004 151 56 01 80 / 004151560180
  • MERCEDES-BENZ: 004 151 79 01 / 0041517901
  • MERCEDES-BENZ: 004 151 79 01 80 / 004151790180
  • MERCEDES-BENZ: 006 151 32 01 / 0061513201
  • SSANGYONG: 004 151 35 01 / 0041513501
  • SSANGYONG: 661 151 31 01 / 6611513101
  • SSANGYONG: 661 151 34 01 / 6611513401
  • SSANGYONG: 661 151 35 01 / 6611513501
  • SSANGYONG: 661 151 37 01 / 6611513701
  • SSANGYONG: 661 151 38 01 / 6611513801
  • DAEWOO: 661 151 31 01 / 6611513101

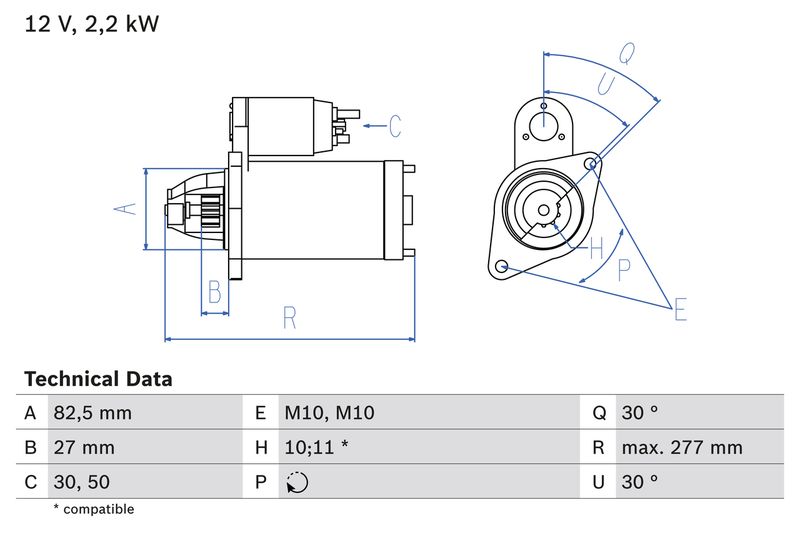

BOSCH Starter 0 986 014 660
Specifications
  • Exchange Part
  • Voltage [V]: 12
  • Rated Power [kW]: 2,2
  • Number of mounting bores: 0
  • Number of threaded holes: 2
  • Number of Teeth: 11
  • Number of Teeth: 10
  • Clamp: 50
  • Clamp: 30
  • Flange Diameter [mm]: 82,5
  • Rotation Direction: Clockwise rotation
  • Pinion Rest Position [mm]: 27
  • Starter Type: Self-supporting
  • Thread Size: M10
  • Thread Size 1: M10x1.5
  • Length [mm]: 277
  • Position/Degree: rechts
  • Mounting Angle [degrees]: 30
  • Jaw opening angle measurement [Degree]: 30
  • Mounting bore angle measurement [degree]: 30
